Adet bazlı fiyat
- 1+ adet$5.64
- 10+ adet$5.33
- 100+ adet$5.02
- 500+ adet$4.74
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Ul Flammability Code
- 94V-0
- Din Conformance
- NO
- Tab Direction
- Up
- Contact Finish Thickness
- 30.0μin 0.76μm
- Uzunluk
- 19.1mm
- Montaj
- Through Hole

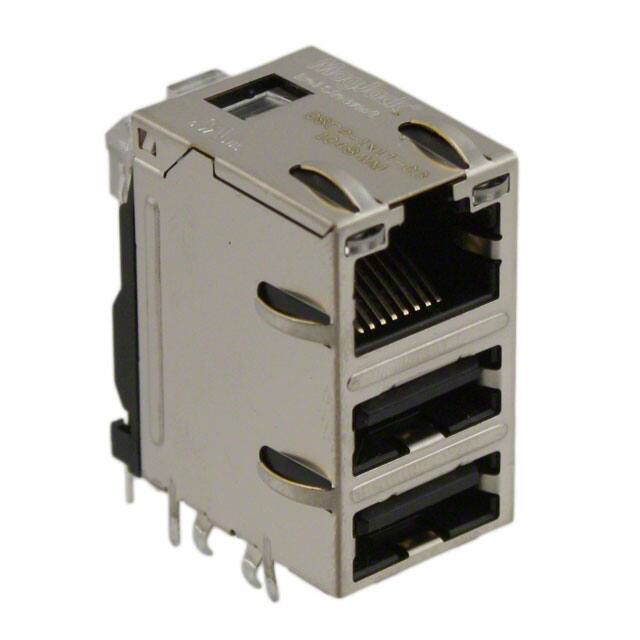

- Connector Type
- RJ45 with USB A, Dual
- Height Above Board
- 1.170 29.72mm
- Ambalaj
- Tray
- Led Color
- Green, Orange - Yellow
- Total Number Of Contacts
- 8
- Orientation
- 90° Angle (Right)
- Iec Conformance
- NO
- Nem Hassasiyeti (MSL)
- Not Applicable
- Çalışma Sıcaklığı
- 0°C~70°C
- Montaj Tipi
- Through Hole
- Depth
- 26.09mm
- Seri
- MagJack®
- Fabrika Tedarik Süresi
- 14 Weeks
- Contact Gender
- FEMALE AND FEMALE
- Mixed Contacts
- NO
- Shielding
- Shielded, EMI Finger
- Shell Finish
- TIN
- RoHS Durumu
- ROHS3 Compliant
- Applications
- 10/100 Base-T
- Empty Shell
- NO
- Additional Feature
- OTHER STACKING CONNECTOR: 8 CONTACTS, 2 PORTS 4 CONTACTS EACH
- Number Of Cores Per Jack
- 5
- Contact Materials
- Copper Alloy
- Contact Finish
- Gold
- Shield Material
- Copper Alloy
- Filter Feature
- YES
- Terminal Sayısı
- 18
- Parça Durumu
- Active
- Özellikler
- Board Lock
- Terminal
- Solder
- Kılıf / Paket
- Metal
- Option
- GENERAL PURPOSE
- Mil Conformance
- NO
- Number Of Ports
- 1
