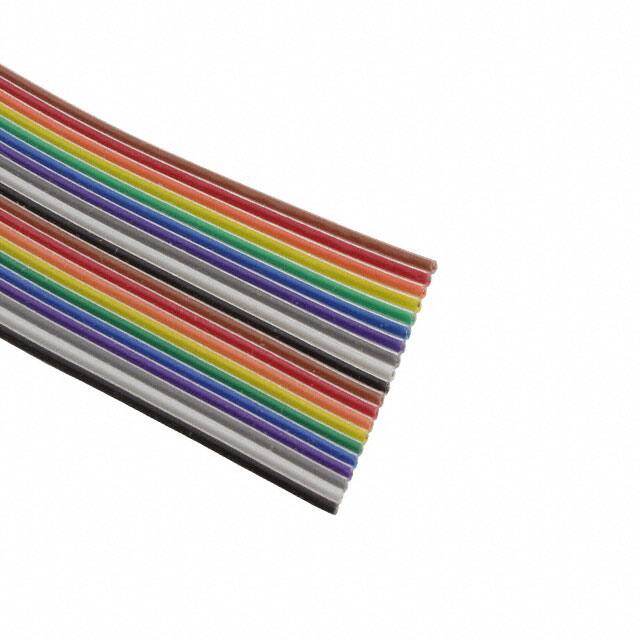

9R28020 000100

Teknik Özellikler

Current Rating Amps

1A

Ratings

UL Style 2884

Pitch

0.050 1.27mm

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-20°C~105°C

Seri

9R280XX

Conductor Strand

7 Strands / 36 AWG

Gerilim

300V

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

2011

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Connector Support Type

WIRE AND CABLE

Number Of Conductors

20

Ribbon Thickness

0.036 0.91mm

Parça Durumu

Active

Uzunluk

100.0' 30.48m

Conductor Material

Copper, Tinned

Wire Gauge

28 AWG

Shielding

Unshielded

Jacket Color

Multiple

Insulation Resistance

10GOhm

Cable Types

Flat Cable

Nem Hassasiyeti (MSL)

Not Applicable

Ribbon Width

1.000 25.40mm
