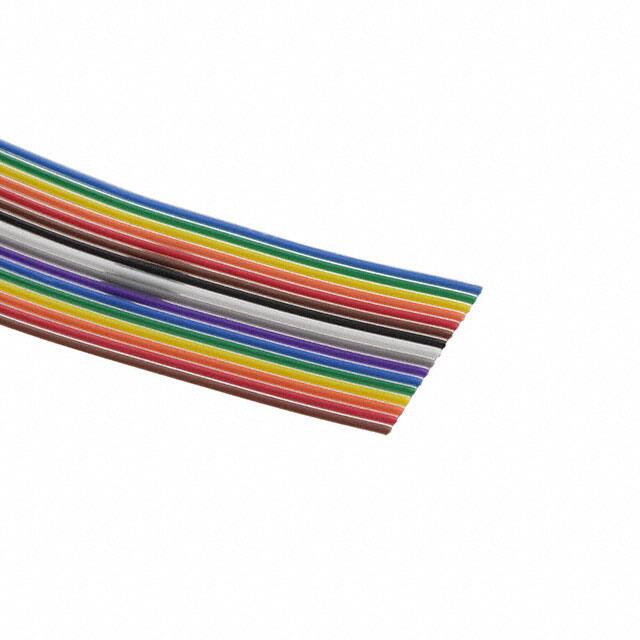

9R28016 000100

Teknik Özellikler

Ribbon Width

0.800 20.32mm

Nem Hassasiyeti (MSL)

Not Applicable

Jacket Color

Multiple

Insulation Resistance

10GOhm

Cable Types

Flat Cable

Wire Gauge

28 AWG

Shielding

Unshielded

Ribbon Thickness

0.036 0.91mm

Parça Durumu

Active

Uzunluk

100.0' 30.48m

Conductor Material

Copper, Tinned

Number Of Conductors

16

Connector Support Type

WIRE AND CABLE

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

2012

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Seri

9R280XX

Conductor Strand

7 Strands / 36 AWG

Gerilim

300V

RoHS Durumu

ROHS3 Compliant

Çalışma Sıcaklığı

-20°C~105°C

Current Rating Amps

1A

Ratings

UL Style 2884

Pitch

0.050 1.27mm
