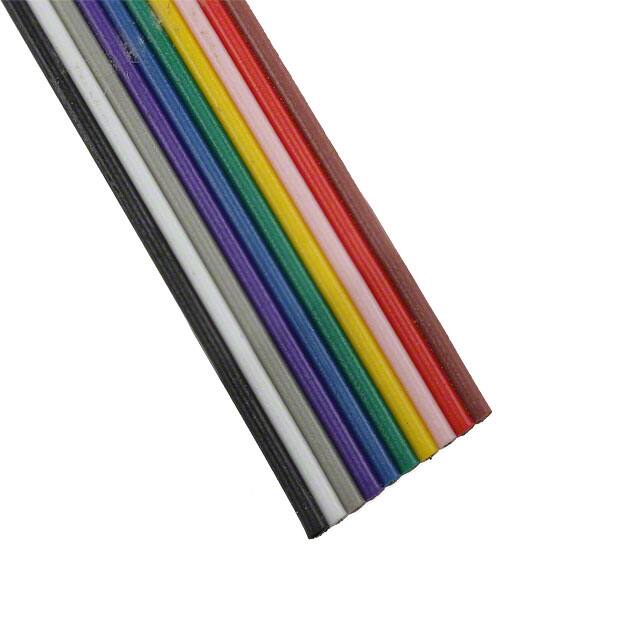

9R28010 000100

Teknik Özellikler

Wire Gauge

28 AWG

Shielding

Unshielded

Number Of Conductors

10

Parça Durumu

Active

Ribbon Thickness

0.036 0.91mm

Uzunluk

100.0' 30.48m

Conductor Material

Copper

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ribbon Width

0.500 12.70mm

Cable Types

Flat Cable

Jacket Color

Multiple

Insulation Resistance

10GOhm

Conductor Strand

7 Strands / 36 AWG

Gerilim

300V

Seri

9R280XX

Current Rating Amps

1A

Pitch

0.050 1.27mm

Çalışma Sıcaklığı

-20°C~105°C

RoHS Durumu

ROHS3 Compliant

Connector Support Type

WIRE AND CABLE

Fabrika Tedarik Süresi

6 Weeks

Yayın Yılı

2008

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)
