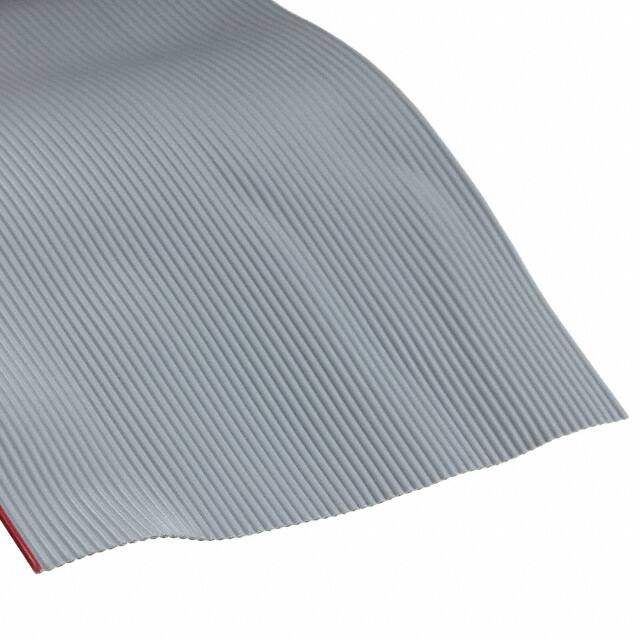

9L28064 008H100

Teknik Özellikler

Fabrika Tedarik Süresi

6 Weeks

Nem Hassasiyeti (MSL)

Not Applicable

Ribbon Thickness

0.035 0.89mm

Gerilim

300V

Cable Types

Flat Cable

First Conductor Mark

Red

Current Rating Amps

1A

Uzunluk

100.0' 30.48m

Number Of Conductors

64

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Material

Copper, Tinned

Shielding

Unshielded

Ribbon Width

3.200 81.28mm

Insulation Resistance

10GOhm

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Connector Support Type

WIRE AND CABLE

Çalışma Sıcaklığı

-40°C~105°C

Yayın Yılı

2008

Parça Durumu

Active

Pitch

0.050 1.27mm

Jacket Color

Gray

RoHS Durumu

ROHS3 Compliant

Seri

9L280XX

Ratings

UL Style 2651
