9L28040 008H100

Teknik Özellikler

Jacket Color

Gray

RoHS Durumu

ROHS3 Compliant

Ratings

UL Style 2651

Seri

9L280XX

Parça Durumu

Active

Pitch

0.050 1.27mm

Çalışma Sıcaklığı

-40°C~105°C

Connector Support Type

WIRE AND CABLE

Yayın Yılı

2008

Ribbon Width

2.000 50.80mm

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Insulation Resistance

10GOhm

Rated Current

1A

Applications

ELECTRONIC EQUIPMENT

Insulation Materials

POLYVINYL CHLORIDE

Shielding

Unshielded

Number Of Conductors

40

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Material

Copper, Tinned

Gerilim

300V

Cable Types

Flat Cable

Ribbon Thickness

0.035 0.89mm

Current Rating Amps

1A

First Conductor Mark

Red

Uzunluk

100.0' 30.48m

Onay Kuruluşu

CSA; UL

Fabrika Tedarik Süresi

6 Weeks

Nem Hassasiyeti (MSL)

Not Applicable

Wire And Cable Name

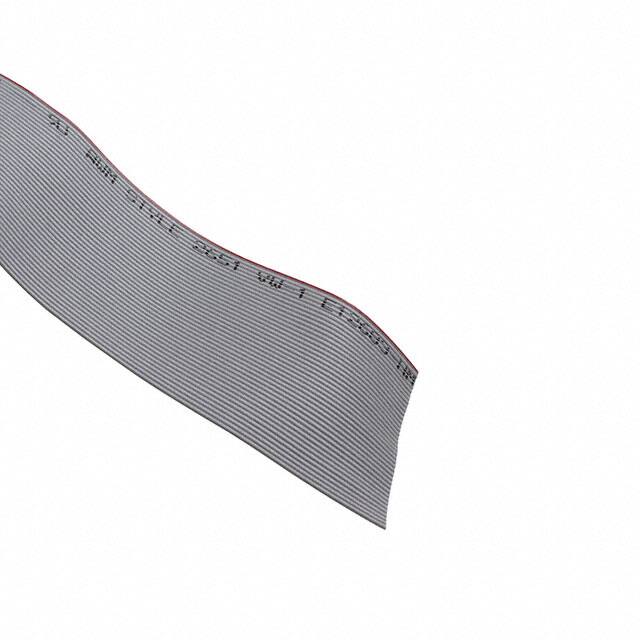

FLAT RIBBON CABLE
