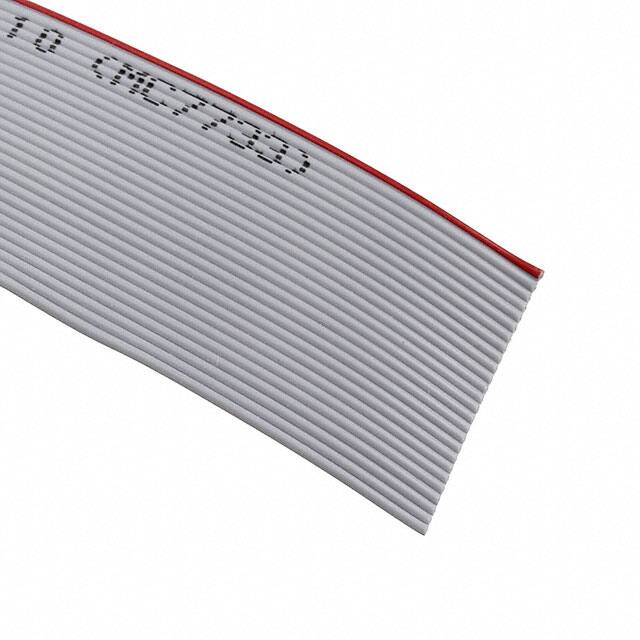

9L28026 008H100

Teknik Özellikler

Pitch

0.050 1.27mm

Parça Durumu

Active

Ratings

UL Style 2651

Seri

9L280XX

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Insulation Resistance

10GOhm

Ribbon Width

1.300 33.02mm

Yayın Yılı

2008

Çalışma Sıcaklığı

-40°C~105°C

Connector Support Type

WIRE AND CABLE

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Material

Copper, Tinned

Number Of Conductors

26

Shielding

Unshielded

Nem Hassasiyeti (MSL)

Not Applicable

Fabrika Tedarik Süresi

6 Weeks

Uzunluk

100.0' 30.48m

Current Rating Amps

1A

First Conductor Mark

Red

Gerilim

300V

Cable Types

Flat Cable

Ribbon Thickness

0.035 0.89mm
