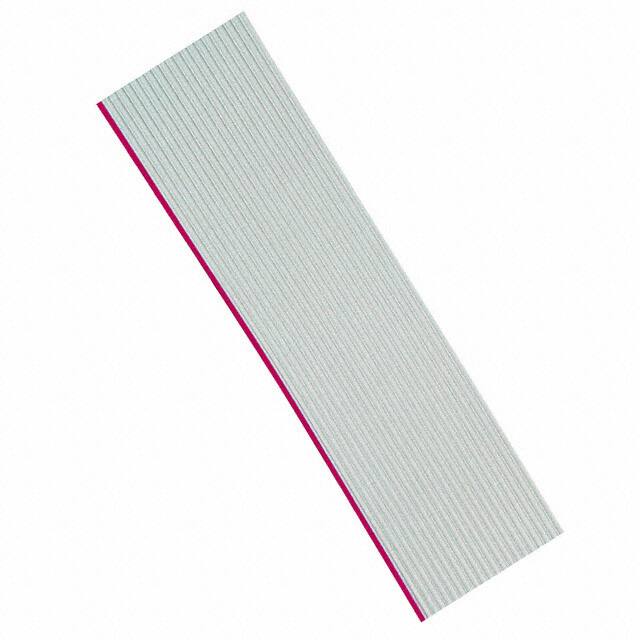

9L28020 008H100

Teknik Özellikler

Current Rating Amps

1A

First Conductor Mark

Red

Cable Types

Flat Cable

Gerilim

300V

Ribbon Thickness

0.035 0.89mm

Yayın Yılı

2008

Çalışma Sıcaklığı

-40°C~105°C

Uzunluk

100.0' 30.48m

Connector Support Type

WIRE AND CABLE

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Insulation Resistance

10GOhm

Ribbon Width

1.000 25.40mm

Fabrika Tedarik Süresi

6 Weeks

Nem Hassasiyeti (MSL)

1 (Unlimited)

Shielding

Unshielded

Seri

9L280XX

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Pitch

0.050 1.27mm

Number Of Conductors

20

Parça Durumu

Active

Conductor Material

Copper

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)
