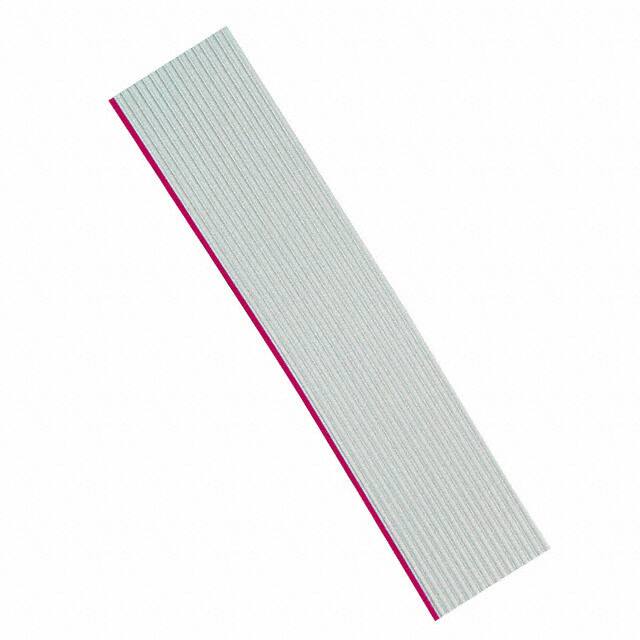

9L28016 008H100

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Ribbon Width

0.800 20.32mm

Fabrika Tedarik Süresi

6 Weeks

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Insulation Resistance

10GOhm

Çalışma Sıcaklığı

-40°C~105°C

Uzunluk

100.0' 30.48m

Connector Support Type

WIRE AND CABLE

Yayın Yılı

2008

Gerilim

300V

Cable Types

Flat Cable

Ribbon Thickness

0.035 0.89mm

Current Rating Amps

1A

First Conductor Mark

Red

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Material

Copper

Parça Durumu

Active

Pitch

0.050 1.27mm

Number Of Conductors

16

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Shielding

Unshielded

Seri

9L280XX
