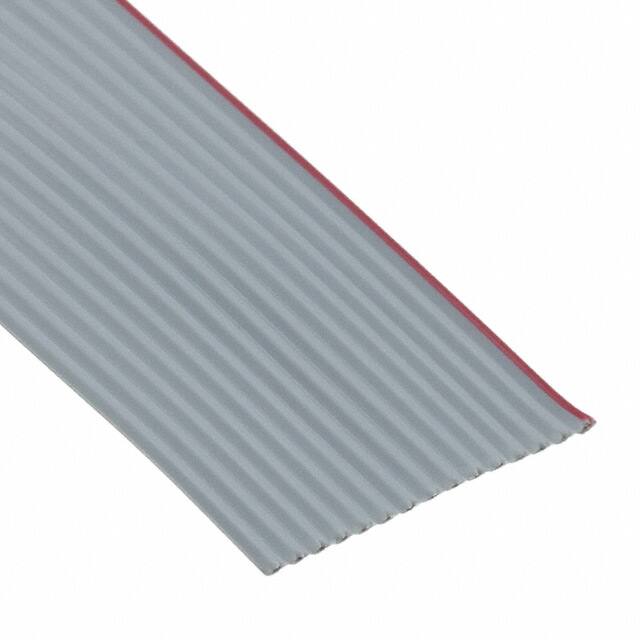

9L28015 008H100

Teknik Özellikler

Conductor Material

Copper, Tinned

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Number Of Conductors

15

Pitch

0.050 1.27mm

Parça Durumu

Active

Seri

9L280XX

Ratings

UL Style 2651

Shielding

Unshielded

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Nem Hassasiyeti (MSL)

Not Applicable

Insulation Resistance

10GOhm

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Fabrika Tedarik Süresi

6 Weeks

Ribbon Width

0.750 19.05mm

Yayın Yılı

2008

Uzunluk

100.0' 30.48m

Çalışma Sıcaklığı

-40°C~105°C

First Conductor Mark

Red

Current Rating Amps

1A

Ribbon Thickness

0.035 0.89mm

Cable Types

Flat Cable

Gerilim

300V
