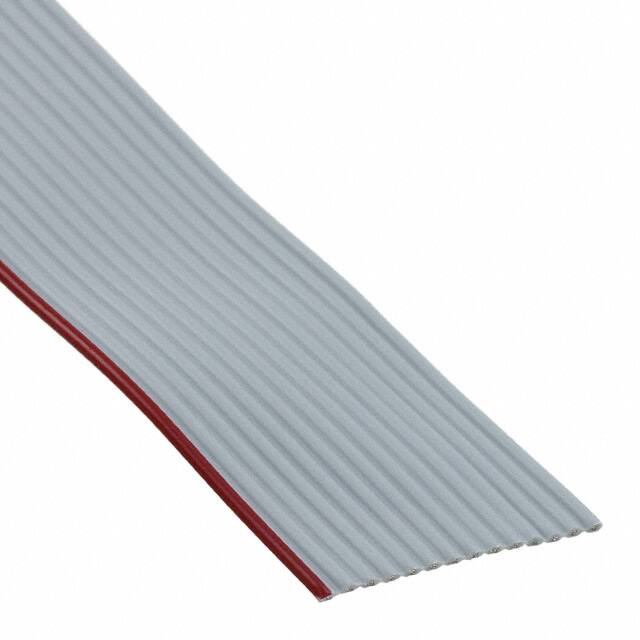

9L28014 008H100

Teknik Özellikler

Pitch

0.050 1.27mm

Parça Durumu

Active

Ratings

UL Style 2651

Seri

9L280XX

Jacket Color

Gray

RoHS Durumu

ROHS3 Compliant

Wire Gauge

28 AWG

Conductor Strand

7 Strands / 36 AWG

Insulation Resistance

10GOhm

Ribbon Width

0.700 17.78mm

Yayın Yılı

2008

Çalışma Sıcaklığı

-40°C~105°C

Connector Support Type

WIRE AND CABLE

Conductor Material

Copper, Tinned

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Number Of Conductors

14

Shielding

Unshielded

Applications

ELECTRONIC EQUIPMENT

Insulation Materials

POLYVINYL CHLORIDE

Rated Current

1A

Wire And Cable Name

FLAT RIBBON CABLE

Nem Hassasiyeti (MSL)

Not Applicable

Fabrika Tedarik Süresi

6 Weeks

Uzunluk

100.0' 30.48m

Onay Kuruluşu

CSA; UL

Current Rating Amps

1A

First Conductor Mark

Red

Gerilim

300V

Cable Types

Flat Cable

Ribbon Thickness

0.035 0.89mm
