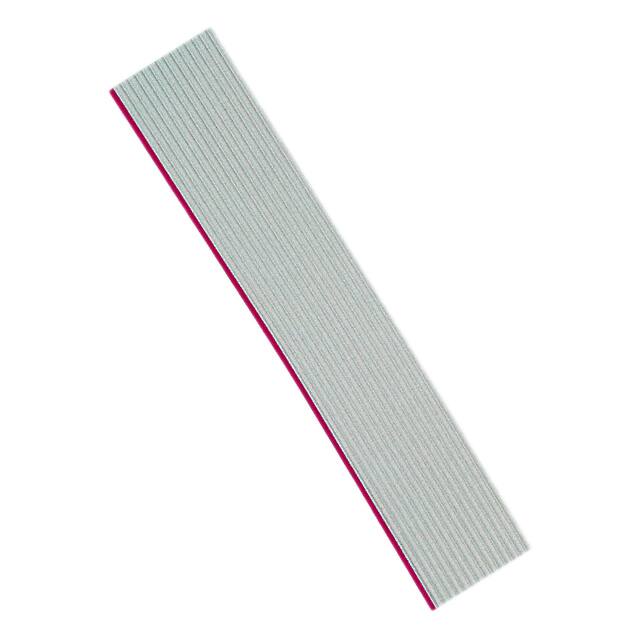

9L28010 008H100

Teknik Özellikler

Rated Current

1A

Shielding

Unshielded

Applications

ELECTRONIC EQUIPMENT

Insulation Materials

POLYVINYL CHLORIDE

Number Of Conductors

10

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Conductor Material

Copper

Current Rating Amps

1A

First Conductor Mark

Red

Cable Types

Flat Cable

Gerilim

300V

Ribbon Thickness

0.035 0.89mm

Onay Kuruluşu

CSA; UL

Uzunluk

100.0' 30.48m

Fabrika Tedarik Süresi

6 Weeks

Wire And Cable Name

FLAT RIBBON CABLE

Nem Hassasiyeti (MSL)

1 (Unlimited)

Stranding

7X36

Seri

9L280XX

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Pitch

0.050 1.27mm

Parça Durumu

Active

Yayın Yılı

2008

Çalışma Sıcaklığı

-40°C~105°C

Connector Support Type

WIRE AND CABLE

Conductor Strand

7 Strands / 36 AWG

Wire Gauge

28 AWG

Insulation Resistance

10GOhm

Ribbon Width

0.500 12.70mm
