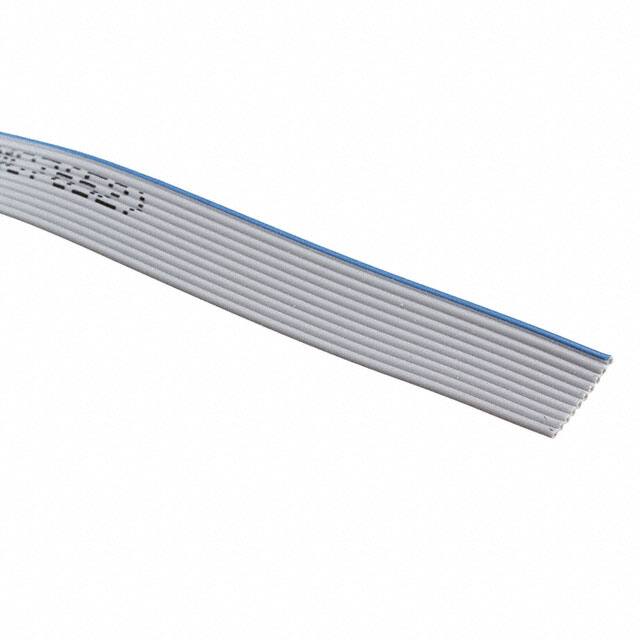

9L26010 008H100

Teknik Özellikler

Conductor Material

Copper, Tinned

Jacket Insulation Material

Poly-Vinyl Chloride (PVC)

Number Of Conductors

10

Shielding

Unshielded

Nem Hassasiyeti (MSL)

Not Applicable

Fabrika Tedarik Süresi

6 Weeks

Uzunluk

100.0' 30.48m

First Conductor Mark

Blue

Current Rating Amps

1.5A

Ribbon Thickness

0.039 0.99mm

Gerilim

300V

Cable Types

Flat Cable

Pitch

0.050 1.27mm

Parça Durumu

Active

Seri

9L260XX

Ratings

UL Style 2651

RoHS Durumu

ROHS3 Compliant

Jacket Color

Gray

Insulation Resistance

10GOhm

Wire Gauge

26 AWG

Conductor Strand

7 Strands / 34 AWG

Ribbon Width

0.500 12.70mm

Yayın Yılı

2012

Connector Support Type

WIRE AND CABLE

Çalışma Sıcaklığı

-40°C~105°C
