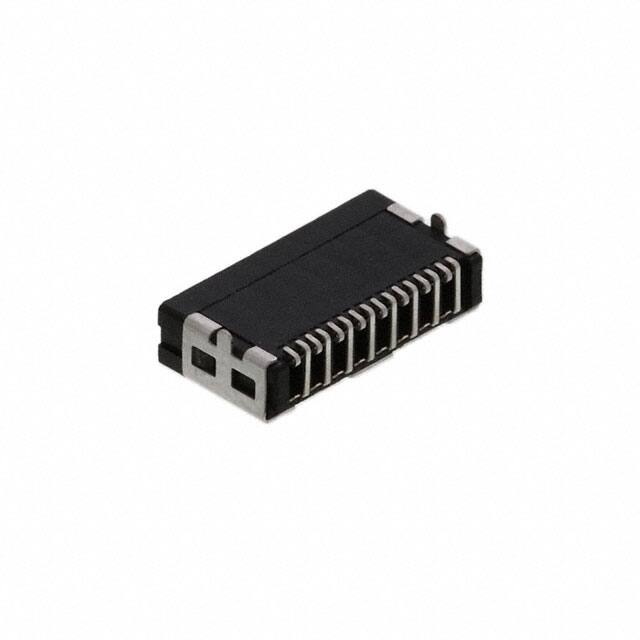

209257016001013

Teknik Özellikler

Additional Feature

POLARIZED

Orientation

Right Angle

Style

Board to Cable/Wire

Iec Conformance

NO

Contact Type

Female Blade Socket

Seri

9257

JESD-609 Kodu

e3

Total Number Of Contacts

16

Contact Finish Thickness Mating

31.5μin 0.80μm

Material Flammability Rating

UL94 V-0

Nem Hassasiyeti (MSL)

3 (168 Hours)

Current Rating Amps

1A per Contact

Max Current Rating

1A

Contact Materials

Beryllium Copper

Number Of Ports

1

Depth

6.75mm

Özellikler

Board Guide, Shielded, Solder Retention

Nominal Gerilim

125VAC

Din Conformance

NO

Kurşunsuz Kodu

yes

Pcb Contact Pattern

RECTANGULAR

Yayın Yılı

2009

Fastening Type

Friction Lock

Plating Thickness

30μin

Mil Conformance

NO

Empty Shell

NO

Parça Durumu

Active

Gender

Female

Sıra Sayısı

2

Number Of Conductors

ONE

Montaj Tipi

Surface Mount, Right Angle

Terminal Adımı

0.635mm

Akım Değeri

1A

Pitch Mating

0.049 1.25mm

Reliability

COMMERCIAL

Number Of Pcb Rows

1

Polarization Key

POLARIZED HOUSING

Connector Type

Receptacle

Terminal

Solder

Insulation Height

0.118 3.00mm
