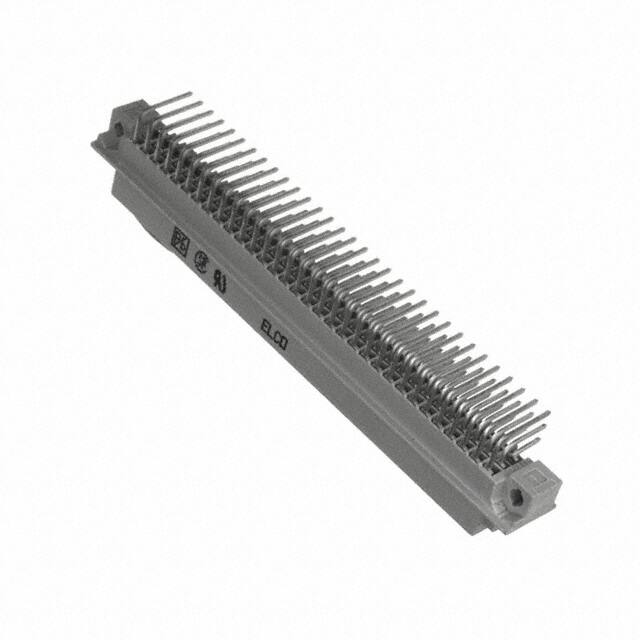

208477096002025

Teknik Özellikler

Ul Flammability Code

94V-0

Seri

8477

Tail Length

3 mm

Sıra Sayısı

3

Çalışma Sıcaklığı

-65°C~125°C

Orientation

Right Angle

Fabrika Paket Adedi

540

Montaj Tipi

Through Hole, Right Angle

Pozisyon Sayısı

96

Style

R

Montaj

Through Hole

Material Insulation

Polyester Thermoplastic, Glass Filled

Contact Finish

Gold

Contact Materials

Bronze

RoHS Durumu

ROHS3 Compliant

Mating Contact Row Spacing

0.1 inch

Terminal

Solder

Current Rating Amps

3A

Housing Material

Polyester

Polarization Key

ENDS

Total Number Of Contacts

96

Ürün Tipi

DIN 41612 Connectors

Mixed Contacts

NO

Tip

R

Genişlik

10.5mm

Mounting Angle

Right

Rows Loaded

a + b + c Fully Loaded

Kurşunsuz Kodu

yes

Length Tail

3mm

Number Of Pcb Rows

3

Fabrika Tedarik Süresi

14 Weeks

Contact Style

Pin

Max Current Rating

3A

Ürün Durumu

Active

Name Of Rows Loaded

A,B,C

Durability

400 Cycles

Connector Type

Receptacle, Female Sockets

Ambalaj

Bulk

Contact Resistance

20mOhm

Iec Conformance

NO
