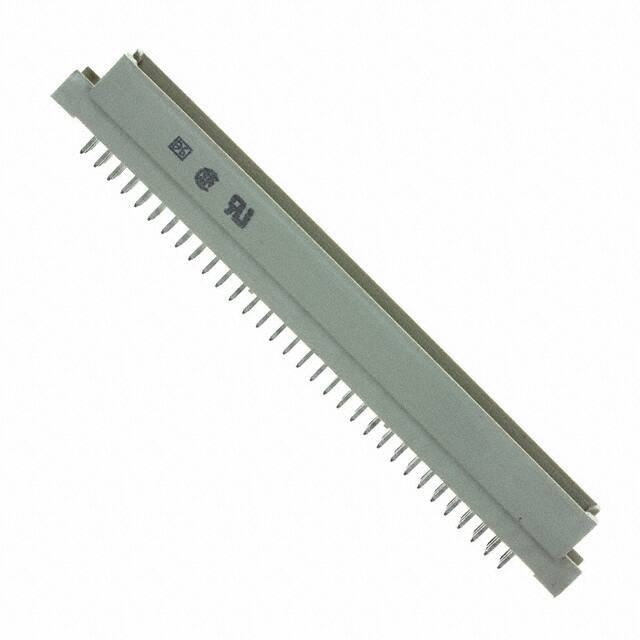

108477096001025

Teknik Özellikler

Pitch

0.100 2.54mm

Mixed Contacts

NO

Contact Resistance

20mOhm

RoHS Durumu

ROHS3 Compliant

Seri

8477

Max Current Rating

3A

Rated Current Signal

3A

Pozisyon Sayısı

96

Uzunluk

93.98mm

Housing Material

Polyester

Material Flammability Rating

UL94 V-0

Ul Flammability Code

94V-0

Mil Conformance

NO

Kurşunsuz

Lead Free

Total Number Of Contacts

96

Parça Durumu

Active

Insulation Resistance

5000000000Ohm

Iec Conformance

NO

Sıra Sayısı

3

Name Of Rows Loaded

A,B,C

Depth

11mm

Contact Materials

Copper

Orientation

Straight

Connector Type

Header, Male Pins

Reference Standard

UL, CSA

Polarization Key

ENDS

Kurşunsuz Kodu

yes

Flammability Rating

UL94 V-0

Radyasyon Dayanımı

No

Dielectric Withstanding Voltage

1000VAC V

Çalışma Sıcaklığı

-65°C~125°C

Montaj

Through Hole

Gender

Male

Material Insulation

Polyester Thermoplastic, Glass Filled

Number Of Positions Loaded

All

Terminal

Solder

Mating Contact Row Spacing

0.1 inch

Durability

400 Cycles

Fabrika Tedarik Süresi

15 Weeks

Level Class

2
