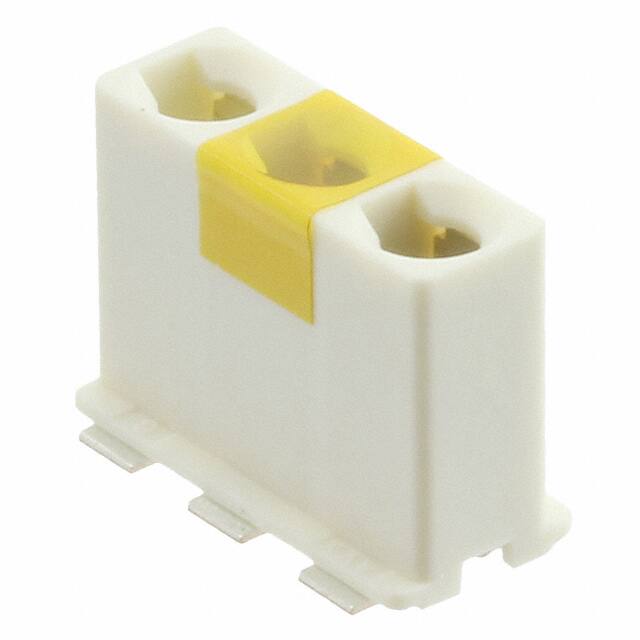

009296003553906

Teknik Özellikler

Maks. Çalışma Sıcaklığı

125°C

Voltage Rating

200 V

Pin Sayısı

3

Applications

Wire-to-Board

Minimum Operating Temperature

- 40 C

Housing Color

White

Contact Materials

Copper Alloy

Boardside Pitch

0.157 4.00mm

Durability

5 Cycles

Mounting Angle

Straight

Min. Çalışma Sıcaklığı

-40°C

Fabrika Paket Adedi

400

Pozisyon Sayısı

3

Reference Standard

UL

Contact Plating

Tin Over Nickel

Schedule B

8536694040/8536694040/8536694040/8536694040/8536694040

Moisture Sensitive

Yes

Number Of Pcb Rows

2

Wire Gauge

18-26 AWG

Birim Ağırlık

0.089244 oz

Ambalaj

Tape & Reel (TR)

Renk

White

Wire Gauge Min

18 AWG

Connector Type

Individual Wires

Number Of Positions Loaded

All

Tip

Poke-Home

Body Length Or Diameter

0.472 inch

Nem Hassasiyeti (MSL)

3 (168 Hours)

Total Number Of Contacts

3

Terminal

SMD/SMT

Cable Pitch

0.157 4.00mm

Pitch

4mm

Cable Termination

Poke-In

Akım Değeri

7A

Contact Pattern

RECTANGULAR

Number Of Conductors

ONE

Sıra Sayısı

1

Nominal Gerilim

200V

Gender

F

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
