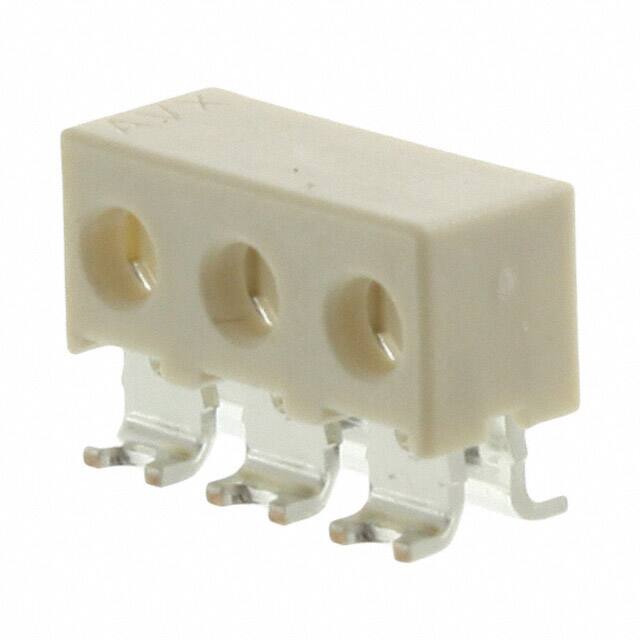

009176003732106

Teknik Özellikler

Cable Pitch

0.157 4.00mm

Akım Değeri

10A

Cable Termination

IDC

Pitch

3.9878mm

Nem Hassasiyeti (MSL)

3 (168 Hours)

Terminal

SMD/SMT

Termination Method

Solder

Paket

Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;

Sıra Sayısı

1

Gender

Receptacle

Nominal Gerilim

300V

Ambalaj

Cut Tape (CT)

Insert Material

52100 Steel;Black Oxide

Birim Ağırlık

0.048343 oz

Wire Gauge

24 AWG, Stranded

Number Of Positions Loaded

All

Tip

IDC Connector

Connector Type

Individual Wires

Renk

White

Minimum Operating Temperature

- 40 C

Boardside Pitch

0.157 4.00mm

Contact Materials

Bronze

Housing Color

White

Applications

Wire-to-Board

Pozisyon Sayısı

3

Fabrika Paket Adedi

600

Moisture Sensitive

Yes

Contact Plating

Tin

Mounting Angle

Straight

Voltage Rating

300 V

Temel Ürün No

009176

Contact Finish

Tin

RoHS Durumu

ROHS3 Compliant

Üretici Parça No

ER-32T

Wirecable Gauge

24 AWG

Ürün Tipi

Headers & Wire Housings

ECCN Kodu

EAR99

Maks. Çalışma Sıcaklığı

+ 125 C

Terminal Stili

Solder

Mounting

Surface Mount
