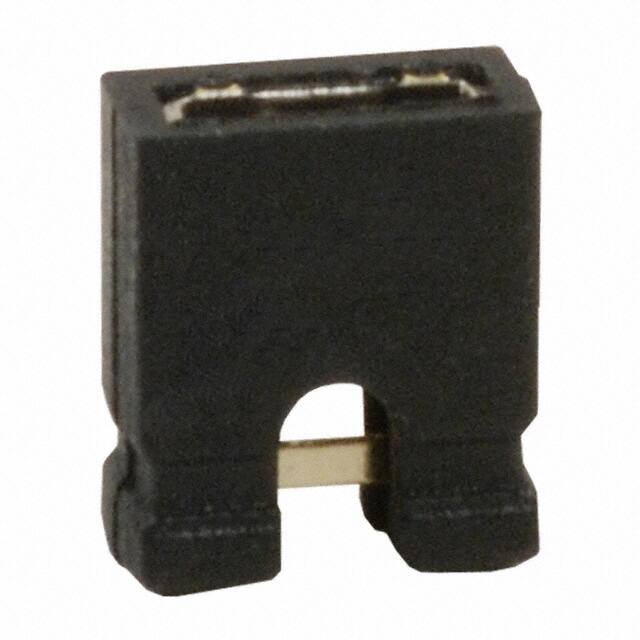

AKSNT-G-BLK

Teknik Özellikler

Kurşunsuz

Contains Lead

Insulation Resistance

5000000000Ohm

Number Of Positions Or Pins Grid

2 (1 x 2)

Gender

Female Sockets

Ambalaj

Bulk

Parça Durumu

Obsolete

Montaj Stili

STRAIGHT

Dielectric Withstanding Voltage

500VAC V

Housing Material

Polybutylene Terephthalate (PBT)

Tip

Open Top

Sıra Sayısı

1

RoHS Durumu

Non-RoHS Compliant

Operating Temperature Max

105°C

Current Rating Amps

3A

Yükseklik

0.177 4.50mm

Contact Materials

PHOSPHOR BRONZE

Yayın Yılı

2005

Bodyshell Style

PLUG

Body Length Or Diameter

0.197 inch

Reference Standard

UL

Body Breadth

0.1 inch

Body Depth

0.177 inch

Contact Pattern

RECTANGULAR

Contact Finish

Gold

Pitch

0.100 2.54mm

Number Of Conductors

ONE

Renk

Black

Reliability

COMMERCIAL

Operating Temperature Min

-40°C

Material Flammability Rating

UL94 V-0

Contact Style

SQ PIN-SKT

Total Number Of Contacts

2

Nem Hassasiyeti (MSL)

1 (Unlimited)

Additional Feature

AVAILABLE IN 30 micro-inch GOL
