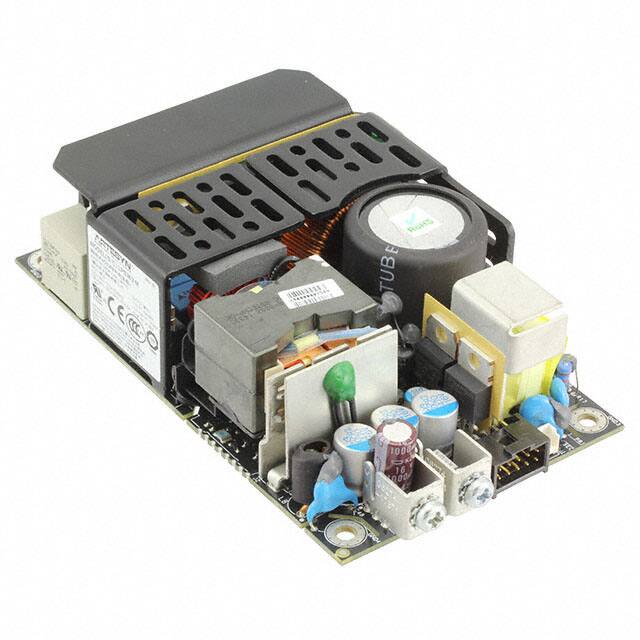

LPS364-M

Teknik Özellikler

Yükseklik

34.798mm

Weight

340.194306g

Number Of Outputs

1

Özellikler

Adjustable Output, DC Input Capable, I²C™ Interface, PFC, PMBus™, Remote On/Off, Remote Sense, Standby Output, Universal Input

RoHS Durumu

RoHS Compliant

Efficiency

92%

Output Power

360W

Reach Svhc

Unknown

Fabrika Tedarik Süresi

8 Weeks

Min Input Voltage Ac

90V

Seri

LPS360-M (360W)

Onay Kuruluşu

CB, CE

Max Input Voltage

264V

Montaj

Chassis Mount

Min Input Voltage

90V

Yayın Yılı

2014

Max Power Dissipation

240W

Max Input Voltage Ac

264V

Max Output Power

240W

Boyut / Ölçü

5.00Lx3.00W x 1.37 H 127.0mmx76.2mmx34.8mm

Output Voltage

15V

Applications

ITE (Commercial), Medical

Parça Durumu

Active

Current Output1

24A

Kurşunsuz Kodu

yes

Güç (Watt)

240W 360W Forced Air

Nem Hassasiyeti (MSL)

1 (Unlimited)

Minimum Load Required

No

Max Output Current

16A

Output Current

31A

Montaj Tipi

Chassis Mount

Depth

39.83mm

Çalışma Sıcaklığı

0°C~70°C With Derating

Power Rating

360W

Tip

Open Frame
