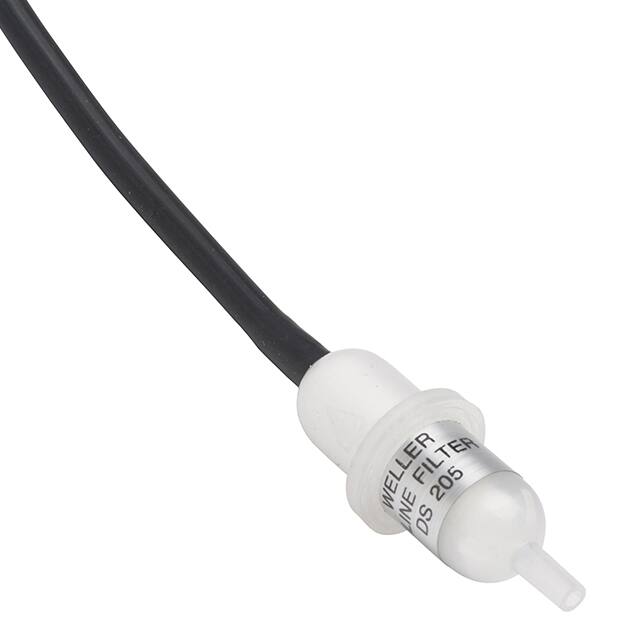

DS205

Teknik Özellikler

Contact Currentdcmax

0.025A

Termination Type

SOLDER

Parça Durumu

Active

Insulation Resistance

1000000000Ohm

Dielectric Withstanding Voltage

500VDC V

Operating Temperature Max

70°C

Terminal Kaplaması

SILVER/NICKEL

Fabrika Tedarik Süresi

12 Weeks

End Contact Material

BRASS

Length Termination

0.118 inch

Pozisyon Sayısı

5

Switch Function

DPST

Contact Function

ON-OFF

Yayın Yılı

2006

Contact Voltagedcmax

24V

Terminal Material

BRASS

Accessory Type

Inline Filter

Insulation Materials

POLYAMIDE

Nem Hassasiyeti (MSL)

Not Applicable

Operating Temperature Min

-25°C

Sealing

EPOXY

Solderability

WAVE

Body Length Or Diameter

26.67mm

Switch Action

MAINTAINED

Body Height

7.6962mm

Weight

18.999992g

Body Breadth

9.6774 mm

Pcb Hole Count

20

End Contact Plating

SILVER OVER NICKEL

Washability

ULTRASONIC

Electricallife

2000 Cycle(s)

Contact Resistance

0.05mOhm

Yüzey Montaj

NO

Center Contact Material

BRASS

RoHS Durumu

Non-RoHS Compliant

Mounting Feature

THROUGH HOLE-STRAIGHT

Actuator Type

SLIDE

Center Contact Plating

SILVER OVER NICKEL

Additional Feature

UL94V-0 MATERIALS USED

Contact Dc Max Rating R Load

0.025A@24VDC
