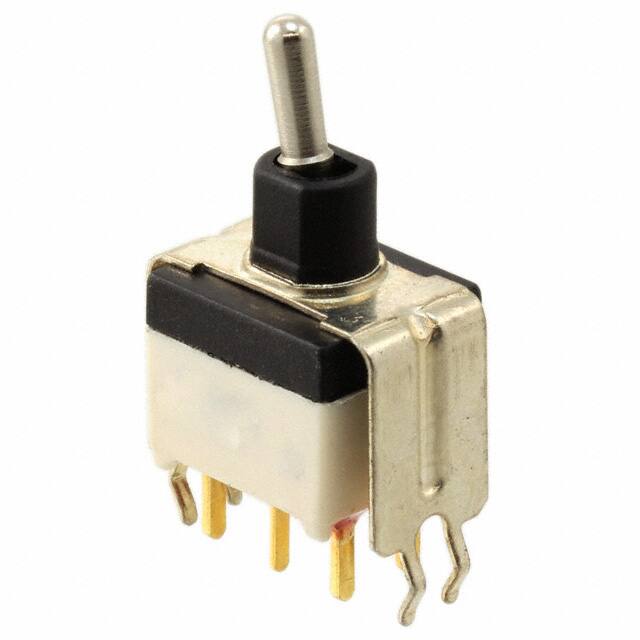

SY246CD7

Teknik Özellikler

Voltage Rated Dc

20V

Body Length Or Diameter

15.75mm

Switch Function

On-On

Reach Svhc

No SVHC

Terminal

PC Pin

Body Breadth

11.35 mm

Actuator Length

7.50mm

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

20V

Illumination

Non-Illuminated

Bushing Thread

Unthreaded

Parça Durumu

Active

Max Voltage Rating Dc

20V

Kurşunsuz Kodu

yes

Actuator Material

Brass, Chrome Plated

Contact Dc Max Rating R Load

.02A@20VDC

Contact Ac Max Rating R Load

.02A@20VAC

Montaj Tipi

Through Hole

Contact Materials

Brass

Current Rating Amps

0.4VA AC/DC

Özellikler

Sealed

Contact Plating

Gold

Illumination Type

Illuminated, Non-Illuminated

Electricallife

100,000 Cycles

Circuit

DPDT

HTS Kodu

8536.50.90.65

Contact Resistance

10mOhm

Seri

S

Fabrika Tedarik Süresi

9 Weeks

Çalışma Sıcaklığı

-20°C~85°C

JESD-609 Kodu

e4

Ambalaj

Bulk

Body Height

11.7mm

Voltage Rated Ac

20V

ECCN Kodu

EAR99

Montaj

Brackets, Through Hole

Orientation

Straight

Terminal Stili

PC Pin

Actuator Type

Standard Round

RoHS Durumu

ROHS3 Compliant
