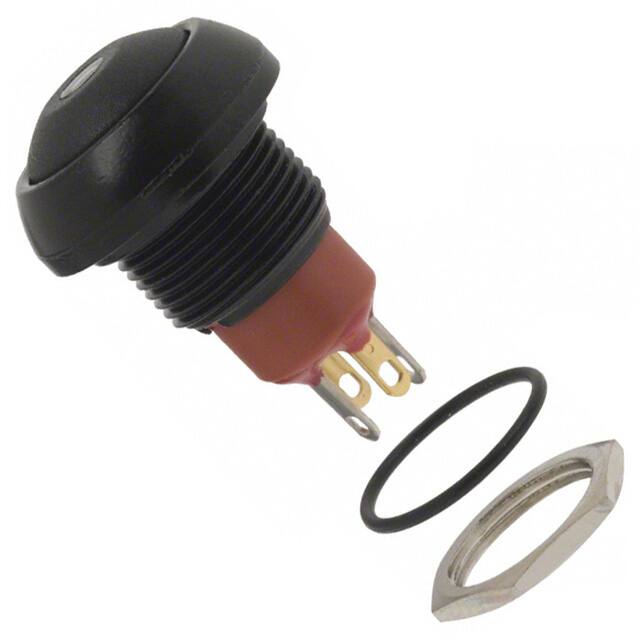

IPR3SAD2L0S

Teknik Özellikler

Contact Currentacmax

0.2A

Bushing Length

0.267 inch

Housing Material

Thermoplastic

Throw Configuration

SPST

Body Height

6.3754mm

Voltage Rated Dc

50V

Illumination Color

Red

Akım Değeri

200mA

Voltage Rated Ac

48V

Tip

Standard, Illuminated

Mechanical Life

1e+06 cycles

Current Rating Amps

500mA AC 200mA DC

Contact Resistance

100mOhm

Actuator Material

Polyamide

Contact Dc Max Rating R Load

0.2A@50VDC

RoHS Durumu

ROHS3 Compliant

Contact Materials

Gold, Silver

Actuator Length

2mm

Contact Function

OFF-(ON)

Contact Ac Max Rating R Load

0.2A@250VAC

Terminal

Solder

Flammability Rating

UL94 V-0

Contact Currentdcmax

0.2A

Ratings

Dust Tight, IP67, Waterproof

Contact Plating

Gold

Fabrika Tedarik Süresi

5 Weeks

Reach Svhc

No SVHC

Çalışma Sıcaklığı

-40°C~125°C

Nem Hassasiyeti (MSL)

1 (Unlimited)

Length Termination

0.342 inch

ECCN Kodu

EAR99

Orientation

Straight

Özellikler

Tactile Feedback

Panel Cutout Dimensions

Circular - 13.60mm Dia

Ingress Protection

IP67 - Dust Tight, Waterproof

Terminal Stili

Solder Lug

Actuator Type

Round, Button

Switch Function

Off-Mom

Kurşunsuz

Lead Free

Circuit

SPST-NO
