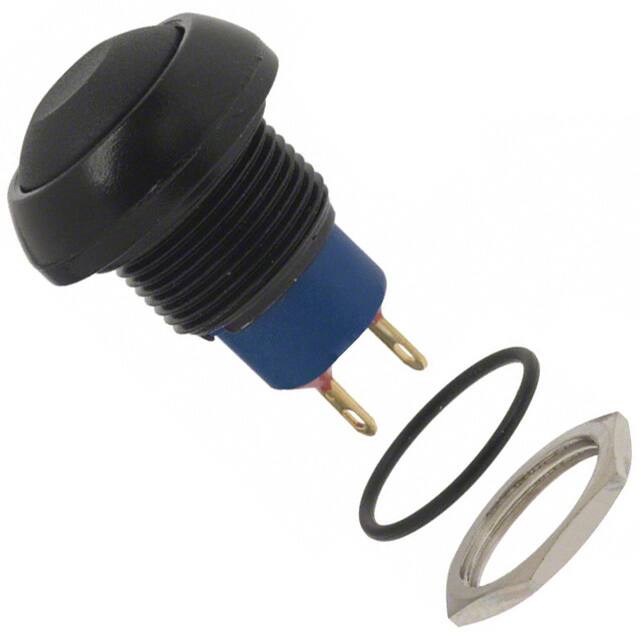

IPR3SAD2

Teknik Özellikler

Max Voltage Rating Dc

48V

Montaj Tipi

Panel Mount, Front

Ambalaj

Bulk

Color Actuatorcap

Black

Sealing

EPOXY

Number Of Poles

1

Contact Current Rating

500mA

Montaj

Front, Panel

Parça Durumu

Active

Seri

IP

Circuit

SPST-NO

Kurşunsuz

Lead Free

Switch Function

Off-Mom

Actuator Type

Round, Button

Electricallife

500,000 Cycles

ECCN Kodu

EAR99

Nem Hassasiyeti (MSL)

1 (Unlimited)

Max Voltage Rating Ac

48V

Çalışma Sıcaklığı

-40°C~125°C

Terminal Stili

Solder Lug

Ingress Protection

IP67 - Dust Tight, Waterproof

Panel Cutout Dimensions

Circular - 13.60mm Dia

Özellikler

Tactile Feedback

Orientation

Straight

Ratings

Dust Tight, IP67, Waterproof

Reach Svhc

No SVHC

Insulation Resistance

1GOhm

Fabrika Tedarik Süresi

5 Weeks

Contact Plating

Gold

Flammability Rating

UL94 V-0

Terminal

Solder

Contact Ac Max Rating R Load

0.2A@250VAC

Contact Function

OFF-(ON)

Actuator Length

2mm

Contact Materials

Gold, Silver

Contact Currentdcmax

0.2A

Current Rating Amps

500mA AC 200mA DC

Switching Voltage

250V

Contact Resistance

100mOhm

Mechanical Life

1e+06 cycles
