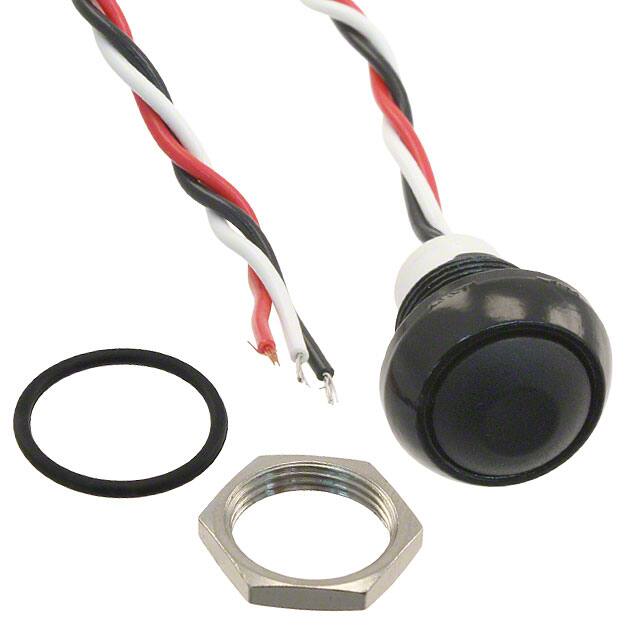

IHSR36F2

Teknik Özellikler

Actuator Type

Round Button

Ingress Protection

IP67 - Dust Tight, Waterproof

Housing Material

PBT

Seri

IH

Circuit

Single

Switch Function

Off-Mom

Max Output Current

50mA

Contact Currentdcmax

0.05A

Parça Durumu

Active

Montaj Tipi

Panel Mount, Front

Besleme Gerilimi

3.5V~24VDC

Terminal Stili

Wire Leads

ECCN Kodu

EAR99

Fabrika Tedarik Süresi

9 Weeks

Actuator Travel

1.778 mm

Actuator Material

POLYAMIDE

Max Output Voltage

28V

Montaj

Front, Panel

Nominal Supply Current

5mA

Actuator Length

0.274 inch

Contact Voltagedcmax

24V

Switch Type

PUSHBUTTON SWITCH

Ratings

Dust Tight, IP67, Waterproof

Çalışma Sıcaklığı

-40°C~85°C

Actuatorcolor

Black

Voltage Rated Ac

28V

Nem Hassasiyeti (MSL)

1 (Unlimited)

RoHS Durumu

ROHS3 Compliant

Ambalaj

Tray

Illumination Type

Illuminated

Travel Range

1.7mm

Supply Current

Varies by Supply Voltage

Akım Değeri

50mA

Contact Dc Max Rating R Load

0.05A@24VDC

Operating Force

612gf

Terminal

Wire Leads

Voltage Rated Dc

28V
