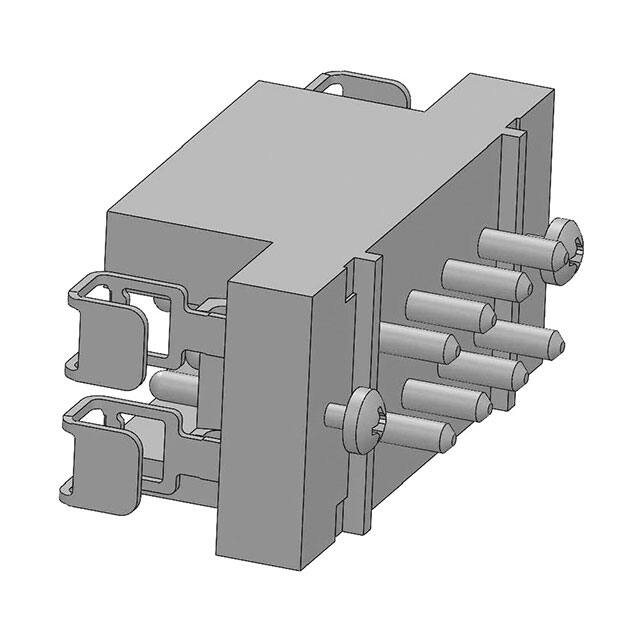

PM208MBALST

Teknik Özellikler

Nem Hassasiyeti (MSL)

1 (Unlimited)

Reference Standard

UL

Contact Type

Male Pin, Power

Akım Değeri

30A

Durability

1000 Cycles

Insulation Height

0.600 15.24mm

Seri

PowerMod®

RoHS Durumu

ROHS3 Compliant

Contact Finish Post

Tin Alloy

Style

Board to Board or Cable

Montaj Tipi

Through Hole

Pozisyon Sayısı

8

Body Breadth

0.61 inch

Shrouding

Shrouded - 2 Wall

Montaj

Screw

Pitch Mating

0.197 5.00mm

Insulation Materials

Polyphenylene Sulfide (PPS)

Reliability

COMMERCIAL

Number Of Conductors

ONE

Contact Plating

Tin

Insulation Color

Black

Contact Shape

Circular

Contact Resistance

3mOhm

Length Termination

0.15 inch

Contact Finish Mating

Gold

Çalışma Sıcaklığı

-55°C~180°C

Özellikler

Mounting Hardware

Sıra Sayısı

2

Contact Materials

Copper Alloy

Fabrika Tedarik Süresi

12 Weeks

Material Flammability Rating

UL94 V-0

Connector Type

Header

Plating Thickness

10μin

Row Spacing Mating

0.197 (5.00mm)

Body Depth

0.6 inch

Number Of Positions Loaded

All

Parça Durumu

Active

Contact Length Post

0.150 3.81mm

Nominal Gerilim

600V

Contact Finish Thickness Mating

10.0μin 0.25μm
