ADP5022ACBZ-2-R7

Teknik Özellikler

Max Output Current

600mA

Nominal Supply Current

110μA

Kurşunsuz Kodu

no

Voltage Output3

2.8V

Topology

Step-Down (Buck) Synchronous (2), Linear (LDO) (1)

Uzunluk

2.08mm

Current Output3

150mA

Min Input Voltage

2.4V

Interface

GPIO

RoHS Durumu

ROHS3 Compliant

Terminal Pozisyonu

BOTTOM

Wsequencer

No

Genişlik

2.08mm

Contact Plating

Copper, Silver, Tin

Kurşunsuz

Contains Lead

Montaj Tipi

Surface Mount

Ambalaj

Tape & Reel (TR)

Voltagecurrent Output3

2.8V 150mA

Tepe Reflow Süresi (maks. sn)

40

Parça Durumu

Active

Pin Sayısı

16

Additional Feature

ALSO OPERATES AT 1.8V AND 2.8V, ALSO OPERATES AS LDO REGULATOR

Terminal Formu

BALL

Voltageoutput1

1.2V

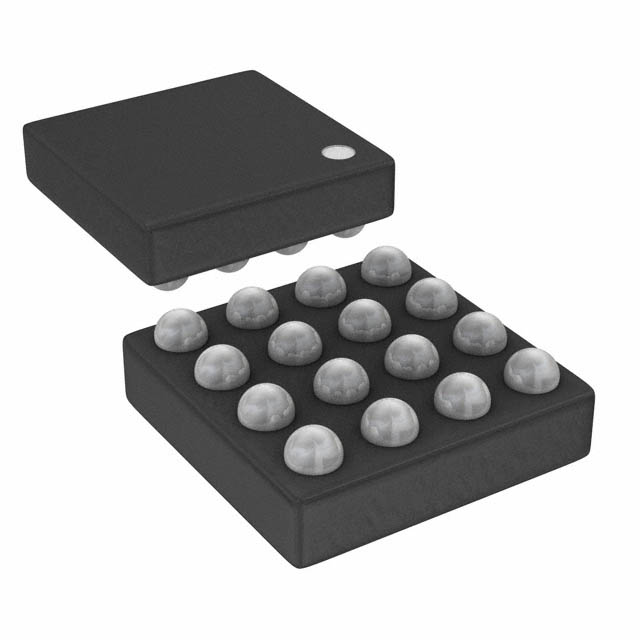

Kılıf / Paket

16-WFBGA, WLCSP

Voltagecurrent Output2

1.8V 600mA

Output Voltage

1.2V

Analog Ic Other Type

SWITCHING REGULATOR

Terminal Sayısı

16

Current Output1

600mA

Number Of Outputs

3

Terminal Kaplaması

Tin/Silver/Copper (Sn/Ag/Cu)

Max Input Voltage

5.5V

Input Voltagenom

3.6V

Voltagecurrent Output1

1.2V 600mA

Tepe Reflow Sıcaklığı (°C)

260

Temel Parça No

ADP5022

Maks. Oturma Yüksekliği

0.66mm

Besleme Gerilimi

2.3V~5.5V

Operating Supply Current

110μA
