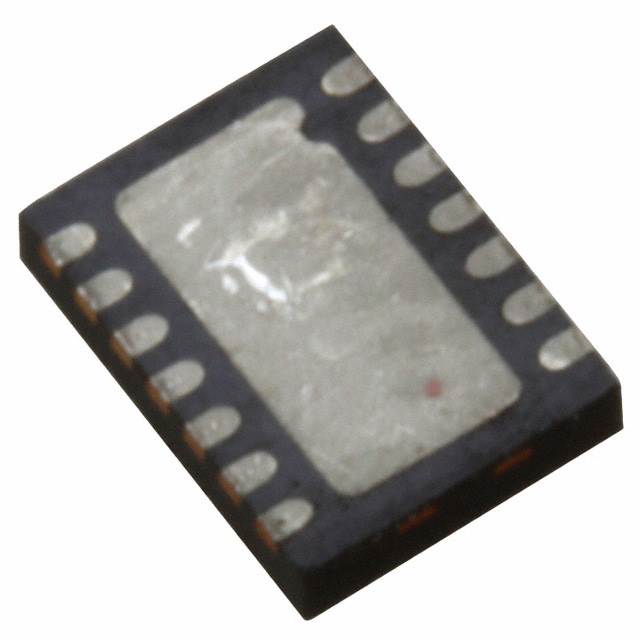

ADP1878ACPZ-0.3-R7

Teknik Özellikler

Çıkış Tipi

Transistor Driver

Voltage Supply Vccvdd

2.95V~20V

Terminal Adımı

0.5mm

Clock Sync

No

Function

Step-Down

ECCN Kodu

EAR99

Max Input Voltage

20V

Min Input Voltage

2.95V

Output Voltage

600mV

Max Duty Cycle

84 %

Operating Supply Current

1.1μA

Switcher Configuration

PUSH-PULL

Contact Plating

Tin

Min Output Voltage

600mV

Tepe Reflow Süresi (maks. sn)

30

Montaj

Surface Mount

Frequency Switching

300kHz

JESD-609 Kodu

e3

Additional Feature

ALSO AVAILABLE ADJUSTABLE OUTPUT DOWN TO 0.6V

Kılıf / Paket

14-WFDFN Exposed Pad, CSP

Çalışma Sıcaklığı

-40°C~125°C TJ

Number Of Outputs

1

Lifecycle Status

LAST TIME BUY (Last Updated: 2 weeks ago)

Pin Sayısı

14

RoHS Durumu

ROHS3 Compliant

Input Voltagenom

12V

Temel Parça No

ADP1878

Topology

Buck

Control Mode

CURRENT-MODE

Ambalaj

Tape & Reel (TR)

Terminal Pozisyonu

DUAL

Analog Ic Other Type

SWITCHING CONTROLLER

Kurşunsuz

Contains Lead

Montaj Tipi

Surface Mount

Output Configuration

Positive

Tepe Reflow Sıcaklığı (°C)

260

Max Output Current

30A

Max Output Voltage

18V

Control Features

Enable, Power Good, Soft Start

Control Technique

PULSE WIDTH MODULATION
