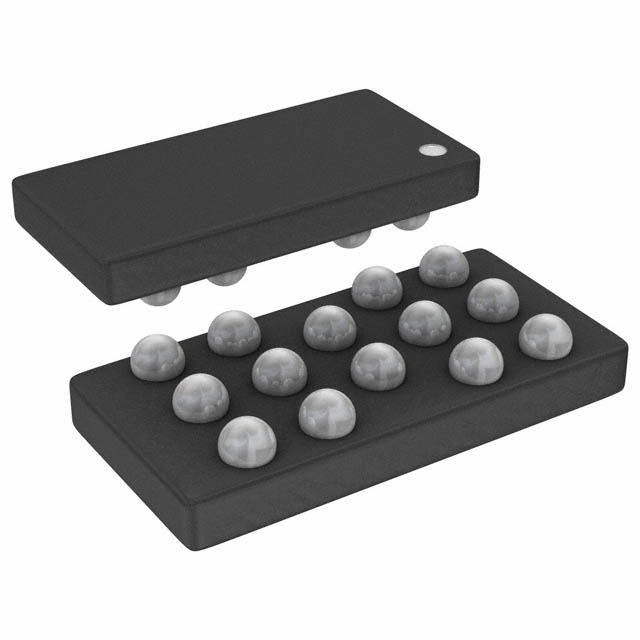

AD8508ACBZ-REEL7

Teknik Özellikler

Montaj Tipi

Surface Mount

Kılıf / Paket

14-UFBGA, WLCSP

Average Bias Currentmax Iib

0.0006μA

Architecture

VOLTAGE-FEEDBACK

Bias Currentmax Iib25c

0.00001μA

Operating Supply Current

60μA

Supply Voltage Limitmax

5.5V

Besleme Gerilimi

5V

Ambalaj

Tape & Reel (TR)

Slew Rate

0.013V/μs

Power Supply Rejection Ratio Psrr

110dB

Terminal Formu

BALL

Input Voltage Noise Density

45nV/sqrt Hz

ECCN Kodu

EAR99

Current Input Bias

1pA

Kurşunsuz

Contains Lead

Packing Method

TAPE AND REEL

Reach Svhc

No SVHC

Unity Gain Bwnom

95 kHz

Contact Plating

Copper, Silver, Tin

Yüzey Montaj

YES

Input Offset Voltage Vos

2.5mV

Uzunluk

2.96mm

Frequency Compensation

YES

Operating Supply Voltage

3V

Pin Sayısı

14

JESD-609 Kodu

e3

Qualification Status

Not Qualified

Terminal Sayısı

14

Çıkış Tipi

Rail-to-Rail

Terminal Adımı

0.5mm

Number Of Channels

4

Voltage Gain

120dB

Input Capacitance

4.2pF

Nem Hassasiyeti (MSL)

1 (Unlimited)

Amplifier Type

General Purpose

Quiescent Current

15μA

Micropower

YES

Terminal Kaplaması

Matte Tin (Sn)

Çalışma Sıcaklığı

-40°C~125°C
