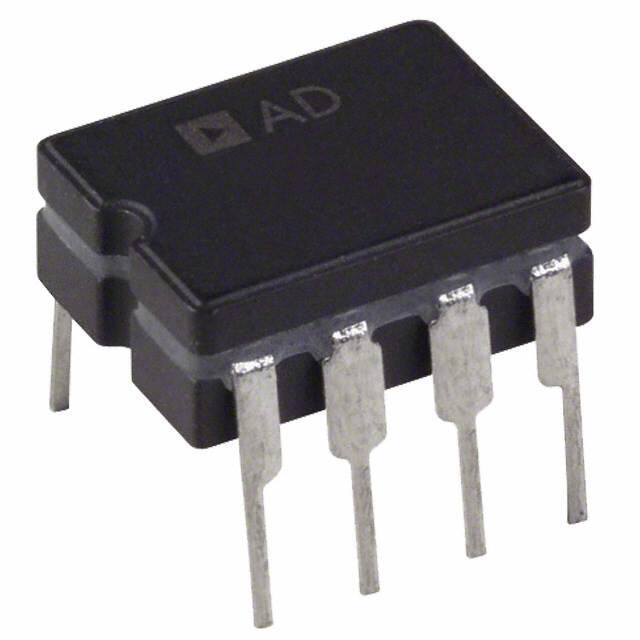

AD746SQ/883B

Teknik Özellikler

Average Bias Currentmax Iib

0.00035μA

Fabrika Tedarik Süresi

12 Weeks

ECCN Kodu

EAR99

Lowbias

YES

Contact Plating

Lead, Tin

Architecture

VOLTAGE-FEEDBACK

Parça Durumu

Active

Terminal Sayısı

8

RoHS Durumu

Non-RoHS Compliant

Max Dual Supply Voltage

18V

Tepe Reflow Süresi (maks. sn)

NOT APPLICABLE

Kurşunsuz

Contains Lead

Bias Currentmax Iib25c

0.00035μA

Kılıf / Paket

Q

Power Dissipation

500mW

Quiescent Current

7mA

Max Power Dissipation

500mW

Dual Supply Voltage

15V

Temperature Grade

MILITARY

JESD-609 Kodu

e0

Temel Parça No

AD746

Neg Supply Voltagenom Vsup

-15V

Lifecycle Status

PRODUCTION (Last Updated: 3 weeks ago)

Amplifier Type

OPERATIONAL AMPLIFIER

Pin Sayısı

8

Power Supply Rejection Ratio Psrr

95dB

Input Offset Voltage Vos

1.5mV

Terminal Kaplaması

Tin/Lead (Sn63Pb37)

Input Bias Current

110pA

Fonksiyon Sayısı

2

Gain Bandwidth Product

10MHz

Maks. Çalışma Sıcaklığı

125°C

Max Supply Voltage

36V

Min Dual Supply Voltage

4.5V

Terminal Formu

THROUGH-HOLE

Besleme Gerilimi

15V

Pin Sayısı

8

Usage Level

Military grade

Voltage Gain

109.54dB

Common Mode Rejection Ratio

88 dB
