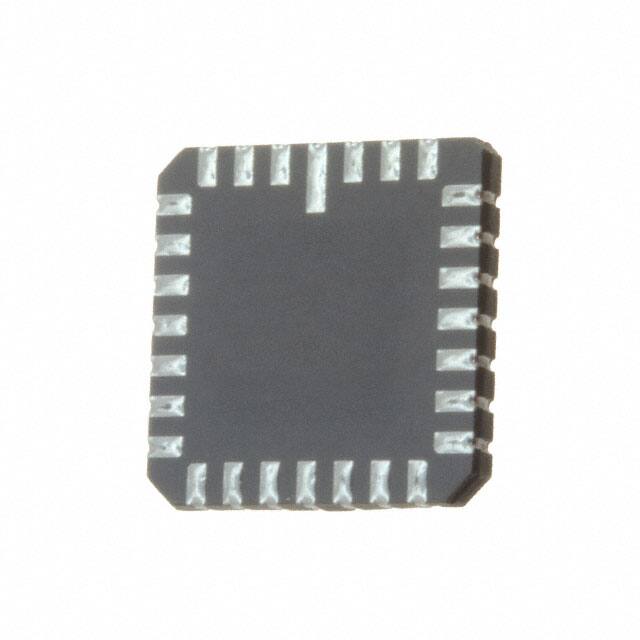

5962-89710013X

Teknik Özellikler

Channel Capacitance Csoff Cdoff

5pF 44pF

Terminal Pozisyonu

QUAD

Qualification Status

Qualified

Switch Circuit

SPST

Propagation Delay

300 ns

Current Leakage Isoff Max

1nA

Fabrika Tedarik Süresi

12 Weeks

Terminal Sayısı

28

Number Of Channels

16

Multiplexerdemultiplexer Circuit

16:1

RoHS Durumu

Non-RoHS Compliant

Max Power Dissipation

28mW

Voltage Supply Singledual

10.8V~16.5V ±10.8V~16.5V

Max Supply Voltage

16.5V

Montaj Tipi

Surface Mount

Besleme Gerilimi

15V

Çalışma Sıcaklığı

-55°C~125°C

Onstate Resistance Max

450Ohm

Pin Sayısı

28

Kurşunsuz Kodu

yes

Kurşunsuz

Lead Free

Screening Level

MIL-STD-883

Parça Durumu

Active

Min Supply Voltage

10.8V

Neg Supply Voltagenom Vsup

-15V

Radyasyon Dayanımı

No

Contact Plating

Gold

Lifecycle Status

PRODUCTION (Last Updated: 1 month ago)

Nem Hassasiyeti (MSL)

1 (Unlimited)

Temel Parça No

ADG526

Max Dual Supply Voltage

16.5V

High Level Output Current

20mA

Turn Off Delay Time

400 ns

Power Dissipation

470mW

Pin Sayısı

28

Analog Ic Other Type

SINGLE-ENDED MULTIPLEXER

Min Dual Supply Voltage

10.8V

Number Of Circuits

1

Direnç

600Ohm

Turn On Delay Time

400 ns
