Adet bazlı fiyat
- 1+ adet$12.95
- 10+ adet$12.22
- 100+ adet$11.52
- 500+ adet$10.87
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fabrika Tedarik Süresi
- 10 Weeks
- Özellikler
- Non-Magnetic
- Housing Color
- Silver
- Includes

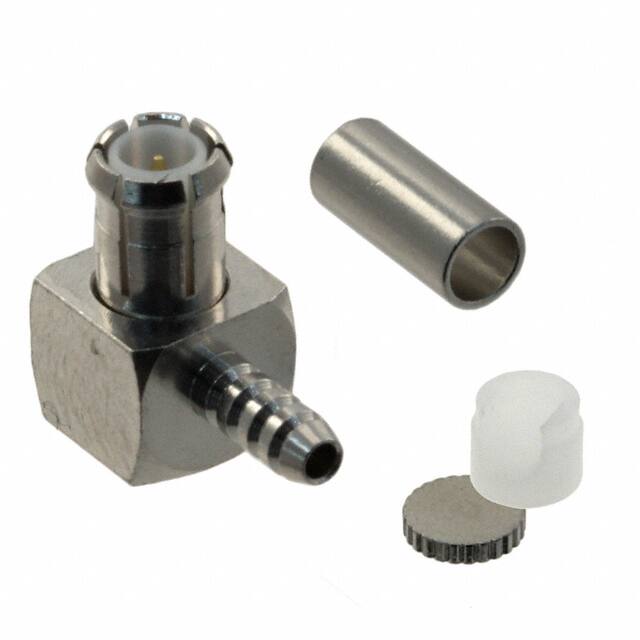

- 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
- Connector Style
- MCX
- Mating Cycles
- 500
- Connector Type
- Plug, Male Pin
- Insulation Materials
- DELRIN/TEFLON
- Yayın Yılı
- 2008
- Contact Termination
- Solder
- Center Contact Plating
- Gold
- Din Conformance
- NO
- Radyasyon Dayanımı
- No
- Vswr
- 1.5
- Option
- GENERAL PURPOSE
- Shield Termination
- Crimp
- Insertion Loss
- 0.1dB
- Çalışma Sıcaklığı
- -40°C~155°C
- RoHS Durumu
- RoHS Compliant
- Contact Materials
- Brass, Copper
- Center Contact Material
- Beryllium Copper
- Number Of Ports
- 1
- Montaj
- Cable, Free Hanging
- Polarity
- Standard
- Frekans
- 6GHz
- Ambalaj
- Bulk
- Filter Feature
- NO
- Body Finish
- White Bronze
- Orientation
- Right Angle
- JESD-609 Kodu
- e4
- Empedans
- 50Ohm
- Parça Durumu
- Active
- Dielectric Material
- Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
- Cable Group
- RG-178, 178A, 178B, 196, 196A, M17/93-RG178
- Body Material
- Beryllium Copper
- Iec Conformance
- NO
- Mil Conformance
- NO
- Fastening Type
- Snap-On
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Body Plating
- Bronze
