Adet bazlı fiyat
- 1+ adet$11.52
- 10+ adet$10.87
- 100+ adet$10.25
- 500+ adet$9.67
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Mating Cycles
- 500
- Connector Type
- Plug, Male Pin

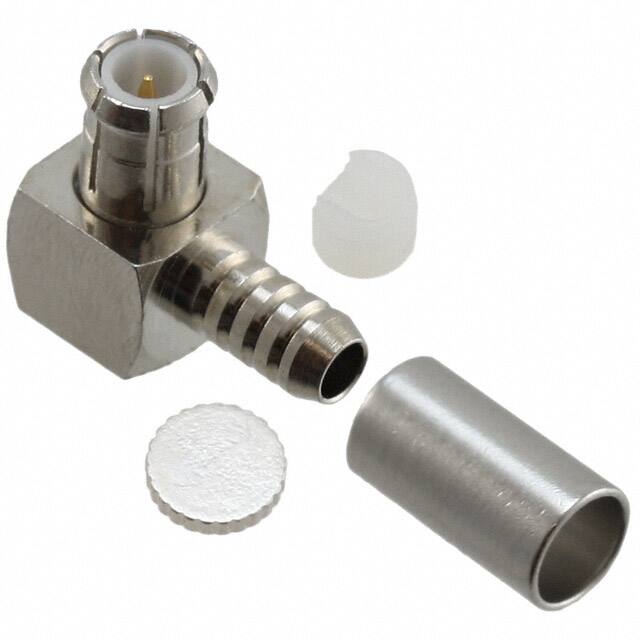

- Includes
- 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
- Connector Style
- MCX
- Özellikler
- Non-Magnetic
- Housing Color
- Silver
- Fabrika Tedarik Süresi
- 9 Weeks
- Vswr
- 1.5
- Option
- GENERAL PURPOSE
- Radyasyon Dayanımı
- No
- Din Conformance
- NO
- Center Contact Plating
- Gold
- Contact Termination
- Solder
- Yayın Yılı
- 2006
- Insulation Materials
- ACETAL AND POLYTETRAFLUORO ETHYLENE
- Polarity
- Standard
- Reliability
- COMMERCIAL
- Number Of Ports
- 1
- Montaj
- Cable, Free Hanging
- Center Contact Material
- Beryllium Copper
- Contact Materials
- Brass, Copper
- RoHS Durumu
- RoHS Compliant
- Çalışma Sıcaklığı
- -40°C~155°C
- Insertion Loss
- 0.1dB
- Shield Termination
- Crimp
- Body Depth
- 0.339 inch
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Body Plating
- Bronze
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Snap-On
- Mil Conformance
- NO
- Iec Conformance
- NO
- Dielectric Material
- Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
- Cable Group
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Body Material
- Beryllium Copper
- Empedans
- 50Ohm
- Parça Durumu
- Active
- Contact Style
- COAX
- Filter Feature
- NO
- Body Finish
- White Bronze
