Adet bazlı fiyat
- 1+ adet$6.86
- 10+ adet$6.47
- 100+ adet$6.11
- 500+ adet$5.76
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Iec Conformance
- NO
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Cable Group
- RG-178, 178A, 178B, 196, 196A, M17/93-RG178
- Body Material
- Beryllium Copper
- Montaj Tipi
- Free Hanging (In-Line)
- Mil Conformance
- NO
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Fastening Type
- Snap-On
- Filter Feature
- NO
- Orientation
- Straight
- Frekans
- 6GHz
- Total Number Of Contacts
- 1
- Ambalaj
- Bulk
- JESD-609 Kodu
- e4
- Empedans
- 50Ohm
- Parça Durumu
- Active
- Contact Style
- COAX
- Montaj
- Cable, Free Hanging
- Number Of Ports
- 1
- Reliability
- COMMERCIAL
- Polarity
- Standard
- Center Contact Material
- Brass
- Shield Termination
- Crimp
- Gender
- Male
- Çalışma Sıcaklığı
- -65°C~165°C
- RoHS Durumu
- RoHS Compliant
- Option
- GENERAL PURPOSE
- Din Conformance
- NO
- Yayın Yılı
- 2001
- Contact Termination
- Solder
- Insulation Materials
- Teflon
- Center Contact Plating
- Gold
- Voltage Rated Dc
- 335V
- Insulation Resistance
- 5GOhm
- Insertion Loss Db
- 0.1 dB
- Mating Cycles
- 500
- Connector Type
- Plug, Male Pin

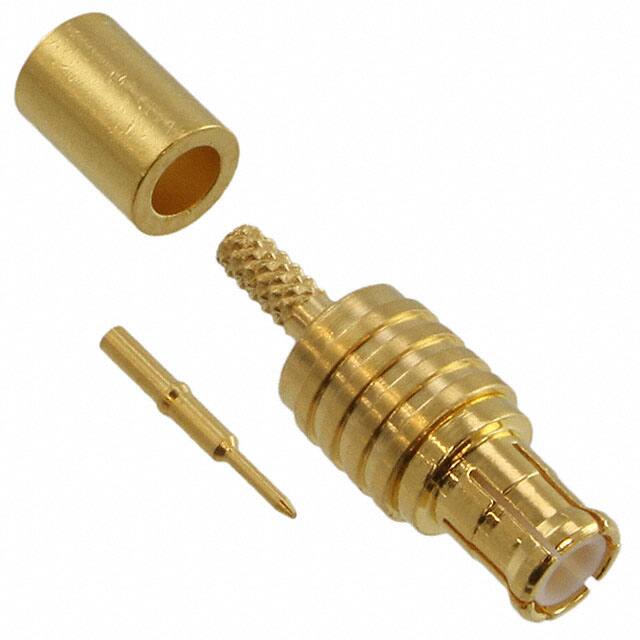

- Includes
- 3 pcs - 1 Connector, 1 Contact, 1 Ferrule
- Connector Style
- MCX
- Fabrika Tedarik Süresi
- 9 Weeks
