Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fabrika Tedarik Süresi
- 9 Weeks
- Mating Information
- NO
- Includes

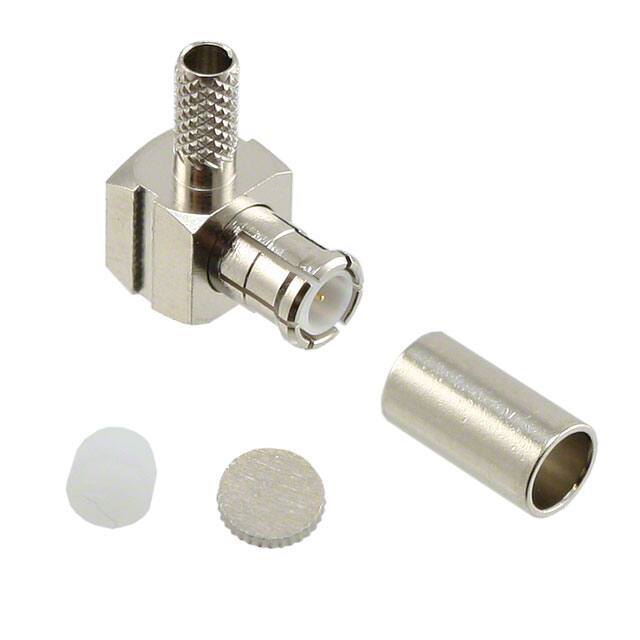

- 4 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Insulator
- Mating Cycles
- 500
- Insulation Resistance
- 5kOhm
- Center Contact Plating
- Gold
- Insulation Materials
- Teflon
- Din Conformance
- NO
- Option
- GENERAL PURPOSE
- Çalışma Sıcaklığı
- -65°C~165°C
- Gender
- Male
- Shield Termination
- Crimp
- Center Contact Material
- Brass
- Montaj
- Cable, Free Hanging
- Number Of Ports
- 1
- Reliability
- COMMERCIAL
- Polarity
- Standard
- JESD-609 Kodu
- e4
- Total Number Of Contacts
- 1
- Orientation
- Right Angle
- Mil Conformance
- NO
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Dielectric Material
- Polyoxymethylene (POM) Acetal, Polytetrafluoroethylene (PTFE)
- Iec Conformance
- NO
- Connector Style
- MCX
- Reach Svhc
- Unknown
- Connector Type
- Plug, Male Pin
- Housing Color
- Silver
- Insertion Loss Db
- 0.1 dB
- ECCN Kodu
- EAR99
- Voltage Rated Dc
- 335V
- Yayın Yılı
- 2000
- Contact Termination
- Solder
- Radyasyon Dayanımı
- No
- Vswr
- 1.1
- RoHS Durumu
- RoHS Compliant
- Body Depth
- 0.339 inch
- Empedans
- 50Ohm
- Parça Durumu
- Active
- Contact Style
- COAX
