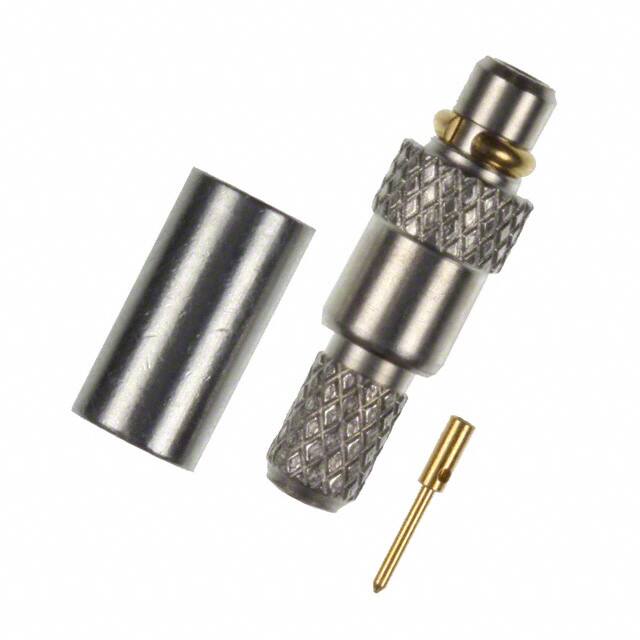

908-NM41300

Teknik Özellikler

Iec Conformance

NO

Mating Cycles

500

Housing Color

Silver

Özellikler

Non-Magnetic

Body Plating

Bronze

Center Contact Material

Beryllium Copper

Connector Style

MMCX

Contact Termination

Solder

Empedans

50Ohm

Reliability

COMMERCIAL

Din Conformance

NO

Vswr

1.2

RoHS Durumu

RoHS Compliant

Contact Materials

Copper

Body Finish

White Bronze

Body Depth

0.32 inch

Includes

3 pcs - 1 Connector, 1 Contact, 1 Ferrule

Frekans

6GHz

Montaj Tipi

Free Hanging (In-Line)

Contact Style

COAX

Polarity

Standard

Number Of Ports

1

Total Number Of Contacts

1

Radyasyon Dayanımı

No

Dielectric Material

Polytetrafluoroethylene (PTFE)

Cable Group

RG-174, 188, 188A, 316, LMR-100, M17/119-RG174

Body Material

Beryllium Copper

Mil Conformance

NO

Orientation

Straight

Fastening Type

Snap-On

Dielectric Withstanding Voltage

700VAC V

Shield Termination

Crimp

Kılıf / Paket

316

Ambalaj

Bulk

Center Contact Plating

Gold

Nem Hassasiyeti (MSL)

1 (Unlimited)

Çalışma Sıcaklığı

-65°C~165°C

Parça Durumu

Active

Montaj

Cable, Free Hanging

Yayın Yılı

2006
