Adet bazlı fiyat
- 1+ adet$19.11
- 10+ adet$18.02
- 100+ adet$17.00
- 500+ adet$16.04
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Nominal Gerilim
- 335V
- Insertion Loss
- 0.6dB
- Radyasyon Dayanımı
- No
- Empedans
- 50Ohm
- Connector Style
- SMB
- Ambalaj
- Bulk
- Contact Termination
- Solder
- Orientation
- Right Angle
- Housing Color
- Silver
- Center Contact Material
- Beryllium Copper
- Shield Termination
- Crimp
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Din Conformance
- NO
- Body Material
- Beryllium Copper
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Number Of Ports
- 1
- Body Finish
- White Bronze
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)

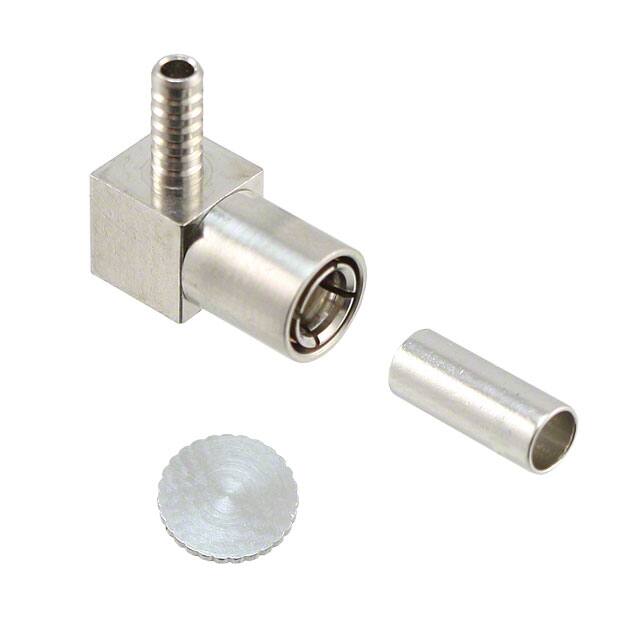

- Includes
- 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
- Özellikler
- Non-Magnetic
- Fabrika Tedarik Süresi
- 9 Weeks
- Body Plating
- Bronze
- Fastening Type
- Snap-On
- Yayın Yılı
- 2006
- Center Contact Plating
- Gold
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Contact Materials
- Brass, Copper
- Filter Feature
- NO
- JESD-609 Kodu
- e4
- Cable Group
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Vswr
- 1.5
- Polarity
- Standard
- Mating Cycles
- 500
- Option
- GENERAL PURPOSE
- Iec Conformance
- NO
- Frekans
- 4GHz
- Çalışma Sıcaklığı
- -40°C~155°C
- Mil Conformance
- NO
