Adet bazlı fiyat
- 1+ adet$31.54
- 10+ adet$29.76
- 100+ adet$28.07
- 500+ adet$26.48
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Includes

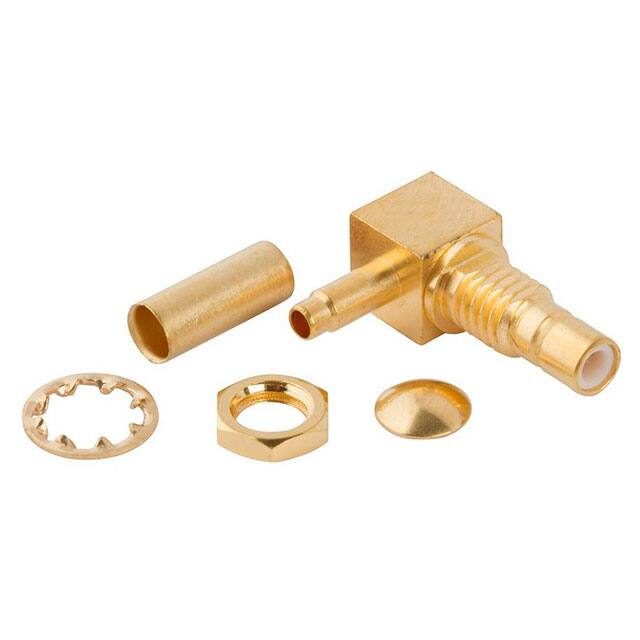

- 5 pcs - 1 Connector, 1 End Cap, 1 Ferrule, 1 Lockwasher, 1 Nut
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- ECCN Kodu
- EAR99
- Fastening Type
- Snap-On
- Fabrika Tedarik Süresi
- 8 Weeks
- Iec Conformance
- NO
- Option
- GENERAL PURPOSE
- Mating Cycles
- 500
- Polarity
- Standard
- Vswr
- 1.5
- JESD-609 Kodu
- e4
- Cable Group
- RG-188, 316
- Filter Feature
- NO
- Contact Materials
- Brass, Copper
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Center Contact Plating
- Gold
- Yayın Yılı
- 2001
- Montaj
- Bulkhead, Cable, Free Hanging, Panel
- Çalışma Sıcaklığı
- -65°C~165°C
- Mil Conformance
- YES
- Connector Type
- Jack, Male Pin
- Frekans
- 4GHz
- Radyasyon Dayanımı
- No
- Empedans
- 50Ohm
- Insertion Loss
- 0.6dB
- Nominal Gerilim
- 335V
- RoHS Durumu
- RoHS Compliant
- Parça Durumu
- Active
- Center Contact Material
- Beryllium Copper
- Orientation
- Right Angle
- Contact Termination
- Solder
- Ambalaj
- Bulk
- Connector Style
- SMB
- Din Conformance
- NO
- Montaj Tipi
- Free Hanging (In-Line), Right Angle
- Shield Termination
- Crimp
- Number Of Ports
- 1
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Body Material
- Brass
