Adet bazlı fiyat
- 1+ adet$49.61
- 10+ adet$46.80
- 100+ adet$44.15
- 500+ adet$41.65
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fastening Type
- Snap-On
- Fabrika Tedarik Süresi
- 9 Weeks
- Includes

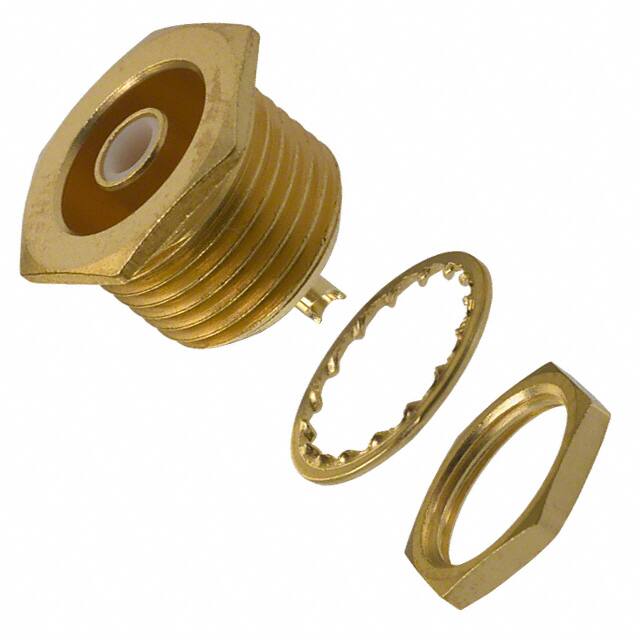

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Özellikler
- Extended Insulation
- ECCN Kodu
- EAR99
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj
- Bulkhead, Front, Panel, Rear Side Nut
- Connector Type
- Receptacle, Male Pin
- Mil Conformance
- YES
- Çalışma Sıcaklığı
- -65°C~165°C
- Frekans
- 4GHz
- Option
- GENERAL PURPOSE
- Gender
- Female
- Mating Cycles
- 500
- Vswr
- 1.5
- Iec Conformance
- NO
- Center Contact Plating
- Gold
- Yayın Yılı
- 2001
- JESD-609 Kodu
- e4
- Filter Feature
- NO
- Contact Materials
- Brass, Copper
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Center Contact Material
- Beryllium Copper
- Ambalaj
- Bulk
- Connector Style
- SMB
- Orientation
- Straight
- Contact Termination
- Solder Cup
- Nominal Gerilim
- 335V
- Radyasyon Dayanımı
- No
- Empedans
- 50Ohm
- Insertion Loss
- 0.3dB
- Parça Durumu
- Active
- Mounting Feature
- Bulkhead - Rear Side Nut
- RoHS Durumu
- RoHS Compliant
- Number Of Ports
- 1
- Body Material
- Brass
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Montaj Tipi
- Panel Mount
- Din Conformance
- NO
- Kurşunsuz
- Lead Free
