Adet bazlı fiyat
- 1+ adet$7.88
- 10+ adet$7.43
- 100+ adet$7.01
- 500+ adet$6.61
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fastening Type
- Snap-On
- Plating
- Gold
- Weight
- 22.700002g
- Fabrika Tedarik Süresi
- 8 Weeks
- Insulation Resistance
- 1GOhm
- Body Plating
- Nickel
- Uzunluk
- 13.3mm

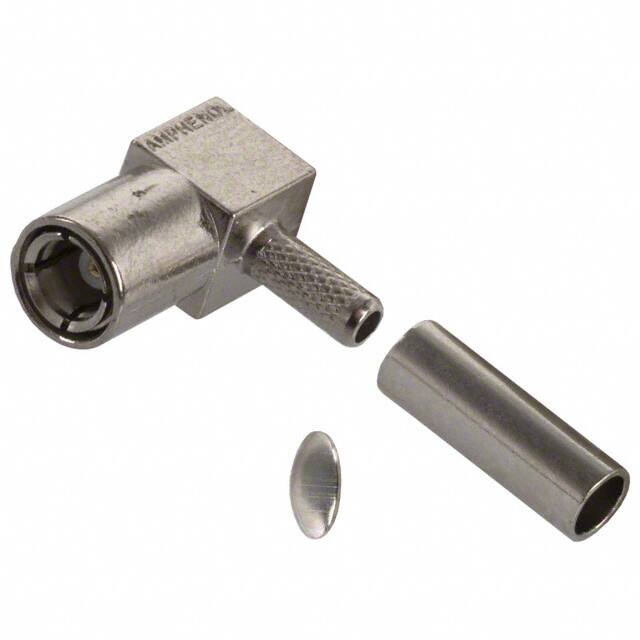

- Includes
- 3 pcs - 1 Connector, 1 End Cap, 1 Ferrule
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Montaj
- Cable, Free Hanging
- Frekans
- 4Hz
- Çalışma Sıcaklığı
- -65°C~165°C
- Connector Type
- Plug, Female Socket
- Gender
- Female
- Mating Cycles
- 500
- Polarity
- Standard
- Yayın Yılı
- 2001
- Center Contact Plating
- Gold
- Insulation Materials
- Tetrafluoroethylene
- Contact Materials
- Copper
- Cable Group
- RG-316
- Housing Color
- Silver
- Kılıf / Paket
- SMB
- Center Contact Material
- Beryllium Copper
- Connector Style
- SMB
- Ambalaj
- Bulk
- Contact Termination
- Solder
- Orientation
- Right Angle
- Nominal Gerilim
- 335V
- Insertion Loss
- 0.6dB
- Empedans
- 50Ohm
- Parça Durumu
- Active
- RoHS Durumu
- RoHS Compliant
- Number Of Ports
- 1
- Terminal
- Solder
- Body Finish
- Nickel
- Contact Plating
- Gold
- Body Material
- Zinc Alloy
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Frequencymax
- 4GHz
