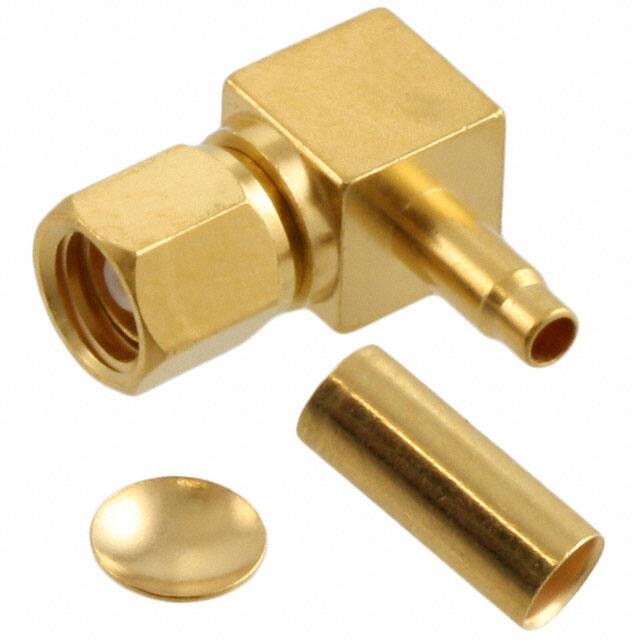

903-288P-52A

Teknik Özellikler

Uzunluk

14.7mm

Includes

3 pcs - 1 Connector, 1 End Cap, 1 Ferrule

Nem Hassasiyeti (MSL)

1 (Unlimited)

Fastening Type

Threaded

Fabrika Tedarik Süresi

10 Weeks

Insulation Resistance

1GOhm

Gender

Female

Mating Cycles

500

Polarity

Standard

Option

GENERAL PURPOSE

Iec Conformance

NO

Yayın Yılı

2001

Center Contact Plating

Gold

Insulation Materials

Polytetrafluoroethylene

Contact Materials

Copper

Filter Feature

NO

Cable Group

RG-174, 188, 188A, 316, LMR-100, M17/119-RG174

Montaj

Cable, Free Hanging

Connector Type

Plug, Female Socket

Mil Conformance

NO

Çalışma Sıcaklığı

-65°C~165°C

Frekans

10GHz

Depth

5.9mm

Nominal Gerilim

335V

Insertion Loss

0.6dB

Empedans

50Ohm

Radyasyon Dayanımı

No

Parça Durumu

Active

RoHS Durumu

RoHS Compliant

Center Contact Material

Beryllium Copper

Connector Style

SMC

Ambalaj

Bulk

Contact Termination

Solder

Orientation

Right Angle

Montaj Tipi

Free Hanging (In-Line), Right Angle

Din Conformance

NO

Shield Termination

Crimp

Number Of Ports

1

Body Material

Brass

Dielectric Material

Polytetrafluoroethylene (PTFE)
