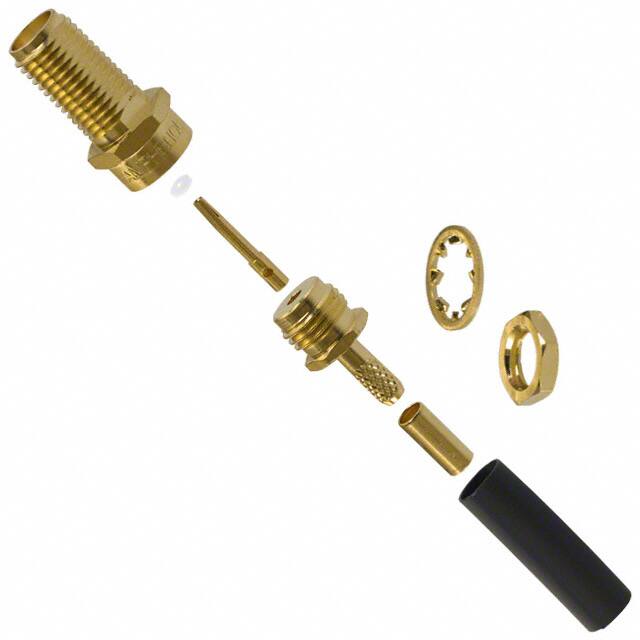

901-9610-3

Teknik Özellikler

Body Depth

0.325 inch

JESD-609 Kodu

e4

Dielectric Material

Polytetrafluoroethylene (PTFE)

Reliability

COMMERCIAL

Empedans

50Ohm

Option

GENERAL PURPOSE

Contact Termination

Solder

Radyasyon Dayanımı

No

Body Material

Stainless Steel

Mil Conformance

NO

Din Conformance

NO

Insulation Materials

Tetrafluoroethylene

ECCN Kodu

EAR99

Cable Group

RG-174, 188, 188A, 316, LMR-100, M17/119-RG174

Nem Hassasiyeti (MSL)

1 (Unlimited)

Number Of Ports

1

Parça Durumu

Active

Total Number Of Contacts

1

Reach Svhc

Unknown

Contact Materials

Copper

RoHS Durumu

RoHS Compliant

Uzunluk

38.1mm

Kurşunsuz

Lead Free

Mating Cycles

500

Insulation Resistance

5GOhm

Montaj

Bulkhead, Front Side Nut, Panel

Frekans

18Hz

Nominal Gerilim

375V

Yayın Yılı

2001

Shield Termination

Crimp

Frequencymax

12.4GHz

Montaj Tipi

Panel Mount

Orientation

Straight

Includes

8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts

Connector Style

SMA

Center Contact Material

Beryllium Copper

Iec Conformance

NO

Center Contact Plating

Gold

Ambalaj

Bulk

Fastening Type

Threaded
