Adet bazlı fiyat
- 1+ adet$43.24
- 10+ adet$40.79
- 100+ adet$38.48
- 500+ adet$36.30
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- JESD-609 Kodu
- e4
- Body Depth
- 0.325 inch
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Reliability
- COMMERCIAL
- Housing Color
- Silver
- Empedans
- 50Ohm
- Option
- GENERAL PURPOSE
- Contact Termination
- Solder
- Mil Conformance
- NO
- Body Material
- Stainless Steel
- Radyasyon Dayanımı
- No
- Insulation Materials
- TFE
- ECCN Kodu
- EAR99
- Din Conformance
- NO
- Cable Group
- RG-55, 142, 223, 400
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Contact Materials
- Copper
- Total Number Of Contacts
- 1
- Parça Durumu
- Active
- Body Plating
- Passivated
- Kurşunsuz
- Lead Free
- RoHS Durumu
- RoHS Compliant
- Uzunluk
- 38.1mm
- Mating Cycles
- 500
- Insulation Resistance
- 5GOhm
- Montaj
- Bulkhead, Front Side Nut, Panel
- Frekans
- 18GHz
- Nominal Gerilim
- 500V
- Frequencymax
- 12.4GHz
- Yayın Yılı
- 2001
- Shield Termination
- Crimp
- Montaj Tipi
- Panel Mount
- Connector Style
- SMA
- Orientation
- Straight
- Includes

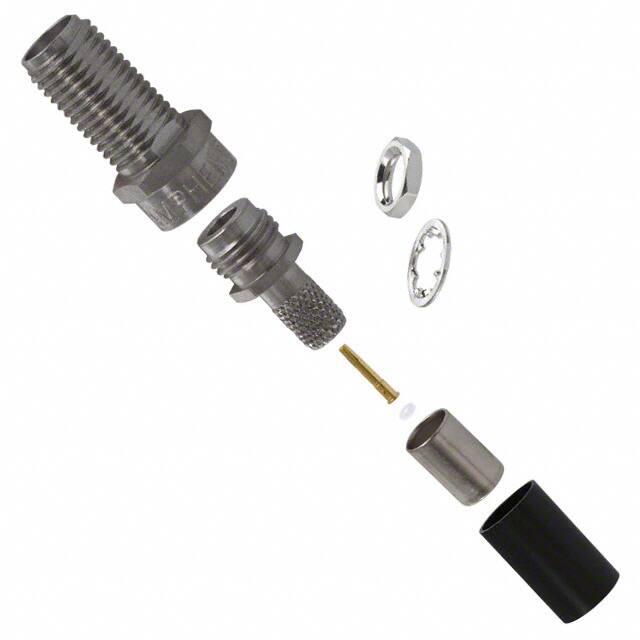

- 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts
- Center Contact Material
- Beryllium Copper
- Iec Conformance
- NO
- Filter Feature
- NO
- Center Contact Plating
- Gold
