Adet bazlı fiyat
- 1+ adet$29.87
- 10+ adet$28.18
- 100+ adet$26.58
- 500+ adet$25.08
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Mil Conformance
- NO
- Connector Style
- SMA
- Orientation
- Straight
- Includes

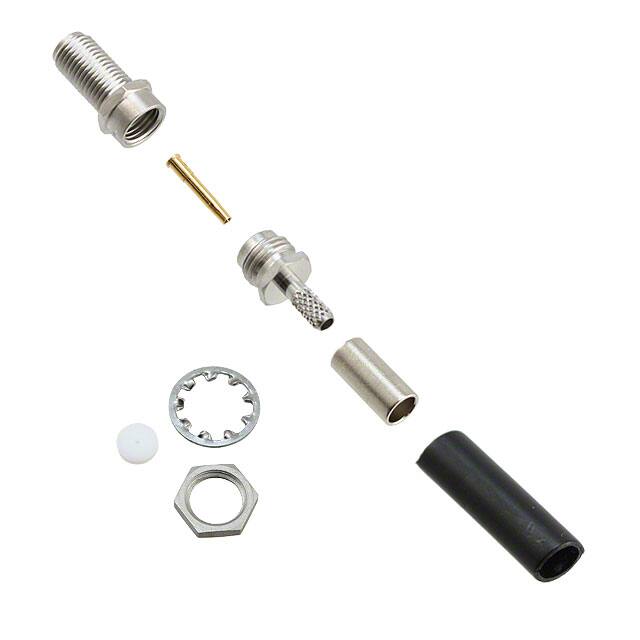

- 8 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Lockwasher, 2 Nuts
- Body Material
- Stainless Steel
- Montaj Tipi
- Panel Mount
- Iec Conformance
- NO
- Din Conformance
- NO
- Insulation Materials
- TFE
- ECCN Kodu
- EAR99
- Center Contact Material
- Beryllium Copper
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Nominal Gerilim
- 375V
- Frekans
- 18GHz
- JESD-609 Kodu
- e4
- Body Depth
- 0.325 inch
- Option
- GENERAL PURPOSE
- Contact Termination
- Solder
- Frequencymax
- 12.4GHz
- Reliability
- COMMERCIAL
- Housing Color
- Silver
- Empedans
- 50Ohm
- Shield Termination
- Crimp
- Yayın Yılı
- 2001
- Mating Cycles
- 500
- Body Plating
- Passivated
- RoHS Durumu
- RoHS Compliant
- Contact Style
- COAX
- Ingress Protection
- Weatherproof
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Bulkhead, Front Side Nut, Panel
- Insulation Resistance
- 5GOhm
- Filter Feature
- NO
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
- Fastening Type
- Threaded
- Cable Group
- RG-179, 188, 316 Double Braid, M17/152-RD316
- Mounting Feature
- Bulkhead - Front Side Nut
- Contact Materials
- Copper
- Gender
- Female
