Adet bazlı fiyat
- 1+ adet$39.69
- 10+ adet$37.44
- 100+ adet$35.32
- 500+ adet$33.32
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Radyasyon Dayanımı
- No
- Body Material
- Stainless Steel
- Orientation
- Straight

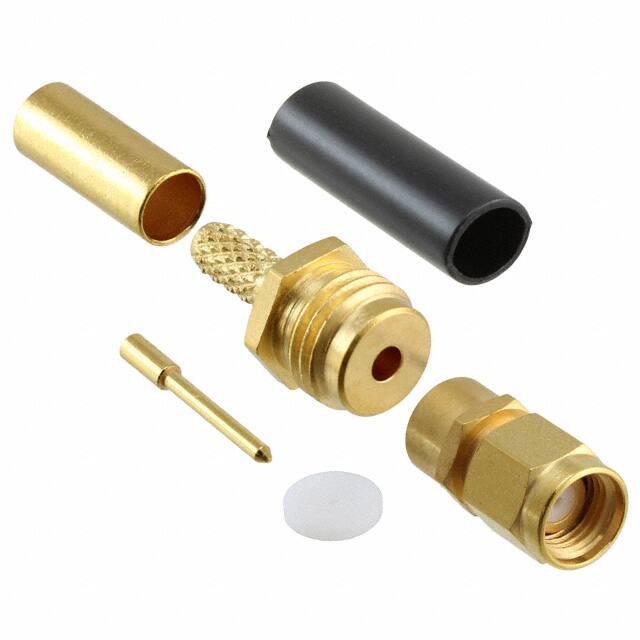

- Includes
- 6 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink, 1 Insulator, 1 Nut
- Mil Conformance
- NO
- Connector Style
- SMA
- Montaj Tipi
- Free Hanging (In-Line)
- ECCN Kodu
- EAR99
- Insulation Materials
- Tetrafluoroethylene
- Din Conformance
- NO
- Iec Conformance
- NO
- Center Contact Material
- Beryllium Copper
- Nominal Gerilim
- 375V
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Frekans
- 12.4Hz
- JESD-609 Kodu
- e4
- Contact Termination
- Solder
- Option
- GENERAL PURPOSE
- Empedans
- 50Ohm
- Shield Termination
- Crimp
- Yayın Yılı
- 2001
- Frequencymax
- 12.4GHz
- Depth
- 7.92mm
- Mating Cycles
- 500
- Polarity
- Standard
- Uzunluk
- 38.1mm
- RoHS Durumu
- RoHS Compliant
- Montaj
- Cable, Free Hanging
- Çalışma Sıcaklığı
- -65°C~165°C
- Ingress Protection
- Weatherproof
- Insulation Resistance
- 5GOhm
- Center Contact Plating
- Gold
- Ambalaj
- Bulk
- Fastening Type
- Threaded
- Cable Group
- RG-174, 188, 188A, 316, LMR-100, M17/119-RG174
- Filter Feature
- NO
- Gender
- Male
- Parça Durumu
- Active
- Contact Materials
- Copper
- Number Of Ports
- 1
