Adet bazlı fiyat
- 1+ adet$16.75
- 10+ adet$15.80
- 100+ adet$14.91
- 500+ adet$14.07
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Fastening Type
- Threaded
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
- Filter Feature
- NO
- Gender
- Female
- Parça Durumu
- Active
- Mounting Feature
- Bulkhead - Front or Rear Side Nut
- Contact Materials
- Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Fabrika Tedarik Süresi
- 9 Weeks
- Connector Type
- Receptacle, Female Socket
- Mating Cycles
- 500
- Polarity
- Standard
- RoHS Durumu
- RoHS Compliant
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Bulkhead, Panel
- Insulation Resistance
- 5GOhm
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- JESD-609 Kodu
- e4
- Frekans
- 18GHz
- Option
- GENERAL PURPOSE
- Contact Termination
- Solder
- Housing Color
- Silver
- Yayın Yılı
- 2001
- Empedans
- 50Ohm
- Includes

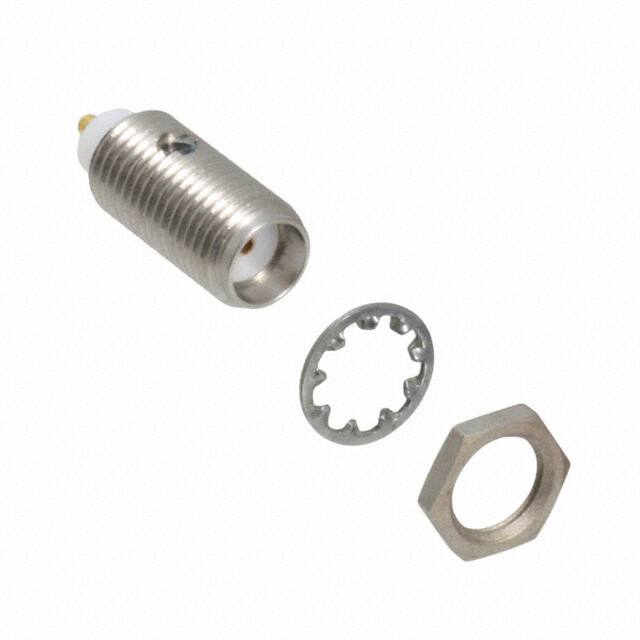

- 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
- Orientation
- Straight
- Body Material
- Stainless Steel
- Additional Feature
- CAPTIVE CONTACT
- Mil Conformance
- NO
- Connector Style
- SMA
- Montaj Tipi
- Panel Mount
- Din Conformance
- NO
- ECCN Kodu
- EAR99
- Insulation Materials
- POLYTETRAFLUORO ETHYLENE
- Iec Conformance
- NO
- Center Contact Material
- Beryllium Copper
