Adet bazlı fiyat
- 1+ adet$24.87
- 10+ adet$23.46
- 100+ adet$22.13
- 500+ adet$20.88
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Contact Termination
- Solder
- Body Finish
- Gold
- Housing Color
- Gold
- Empedans
- 50Ohm
- Shield Termination
- Solder
- Yayın Yılı
- 2012
- Frequencymax
- 3GHz
- Seri
- ARC
- Terminal
- Solder
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Maks. Çalışma Sıcaklığı
- 165°C
- Frekans
- 3GHz
- Min. Çalışma Sıcaklığı
- -65°C
- Center Contact Material
- Beryllium Copper
- Orientation
- Straight

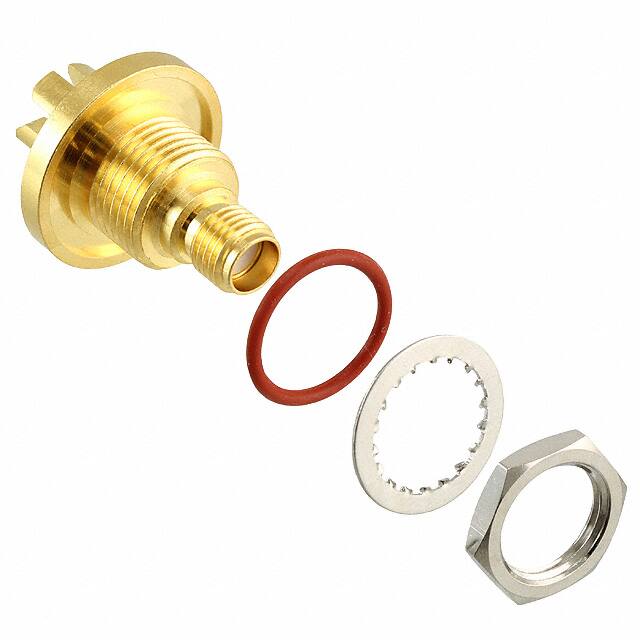

- Includes
- 4 pcs - 1 Connector, 1 Gasket, 1 Lockwasher, 1 Nut
- Radyasyon Dayanımı
- No
- Body Material
- Brass
- Connector Style
- SMA
- Montaj Tipi
- Board Edge, End Launch; Panel Mount
- Parça Durumu
- Active
- Gender
- Male
- Contact Plating
- Gold
- Mounting Feature
- Bulkhead - Front Side Nut
- Contact Materials
- Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Connector Type
- Jack, Female Socket
- Fabrika Tedarik Süresi
- 10 Weeks
- Fastening Type
- Threaded
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
- Çalışma Sıcaklığı
- -65°C~165°C
- Montaj
- Bulkhead, Edge, Panel
- Ingress Protection
- IP67 - Dust Tight, Waterproof
- Board Thickness
- 1.5748mm
- Mating Cycles
- 500
- Ratings
- Dust Tight, IP67, Waterproof
- Kılıf / Paket
- SMA
- Polarity
- Standard
