Adet bazlı fiyat
- 1+ adet$10.88
- 10+ adet$10.27
- 100+ adet$9.69
- 500+ adet$9.14
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Contact Termination
- Solder
- Option
- GENERAL PURPOSE
- Frequencymax
- 12.4GHz
- Depth
- 8mm
- Empedans
- 50Ohm
- Shield Termination
- Crimp
- Insertion Loss
- 0.25 dB
- Yayın Yılı
- 2001
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Nominal Gerilim
- 375V
- Frekans
- 18GHz
- JESD-609 Kodu
- e4
- Yükseklik
- 8mm
- Iec Conformance
- NO
- Din Conformance
- NO
- Insulation Materials
- Tetrafluoroethylene
- Connector Style
- SMA
- Mil Conformance
- NO
- Body Material
- Brass
- Radyasyon Dayanımı
- No

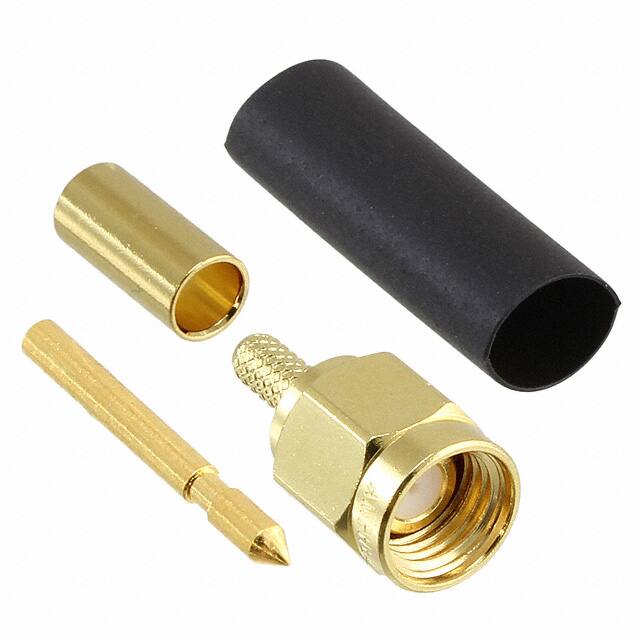

- Includes
- 4 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Heat Shrink
- Orientation
- Straight
- Montaj Tipi
- Free Hanging (In-Line)
- Parça Durumu
- Active
- Connector Type
- Plug, Male Pin
- Fabrika Tedarik Süresi
- 9 Weeks
- Number Of Ports
- 1
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Filter Feature
- NO
- Cable Group
- RG-179, 188, 316 Double Braid, M17/152-RD316
- Fastening Type
- Threaded
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
- Ingress Protection
- Weatherproof
- Montaj
- Cable, Free Hanging
- Çalışma Sıcaklığı
- -65°C~165°C
- Polarity
- Standard
- Mating Cycles
- 500
- RoHS Durumu
- RoHS Compliant
