Adet bazlı fiyat
- 1+ adet$25.12
- 10+ adet$23.70
- 100+ adet$22.35
- 500+ adet$21.09
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- JESD-609 Kodu
- e4
- Frekans
- 18GHz
- Option
- GENERAL PURPOSE
- Contact Termination
- Solder
- Housing Color
- Silver
- Reliability
- COMMERCIAL
- Yayın Yılı
- 2000
- Shield Termination
- Crimp
- Empedans
- 50Ohm
- Frequencymax
- 12.4GHz
- Includes

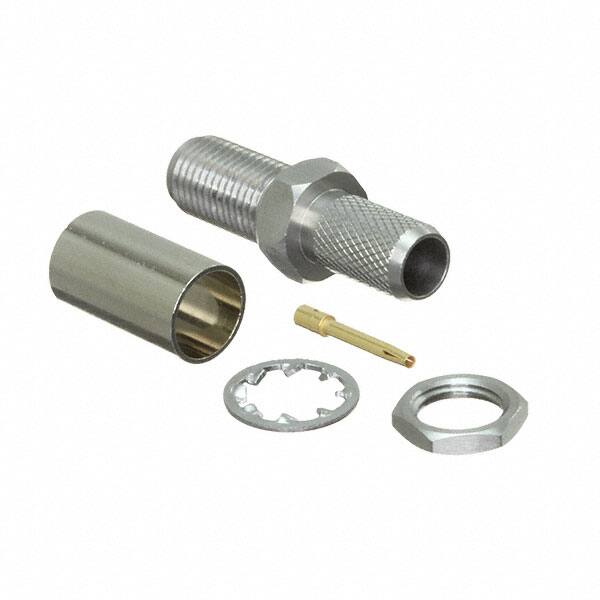

- 5 pcs - 1 Connector, 1 Contact, 1 Ferrule, 1 Lockwasher, 1 Nut
- Orientation
- Straight
- Radyasyon Dayanımı
- No
- Body Material
- Stainless Steel
- Connector Style
- SMA
- Mil Conformance
- NO
- Additional Feature
- CAPTIVE CONTACT
- Montaj Tipi
- Panel Mount
- Din Conformance
- NO
- Insulation Materials
- TFE
- Iec Conformance
- NO
- Center Contact Material
- Beryllium Copper
- Cable Types
- LMR240
- Cable Group
- Belden 9258, LMR-240
- Fastening Type
- Threaded
- Ambalaj
- Bulk
- Center Contact Plating
- Gold
- Filter Feature
- NO
- Total Number Of Contacts
- 1
- Parça Durumu
- Active
- Mounting Feature
- Bulkhead - Front Side Nut
- Contact Materials
- Copper
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Number Of Ports
- 1
- Fabrika Tedarik Süresi
- 10 Weeks
- Connector Type
- Jack, Female Socket
- Mating Cycles
- 500
- Polarity
- Standard
- RoHS Durumu
- RoHS Compliant
