Fiyat için teklif alın
Adet ve teslim süresine göre fiyatlandırılır.
Sevkiyat
Stoktan aynı gün hazırlık
Orijinal ürün
Doğrulanmış tedarik
RoHS
Compliant
Destek
Teknik ekip desteği
Teknik Özellikler
- Connector Style
- N Type
- Kurşunsuz
- Lead Free
- Option
- GENERAL PURPOSE
- Nominal Gerilim
- 1500V
- Insulation Materials
- Tetrafluoroethylene
- Number Of Ports
- 1
- Ingress Protection
- Weatherproof
- Connector Type
- Plug, Male Pin
- Contact Termination
- Solder
- Iec Conformance
- NO
- Mating Cycles
- 500
- Fabrika Tedarik Süresi
- 10 Weeks
- Reach Svhc
- Unknown
- Body Material
- Brass
- JESD-609 Kodu
- e4
- Empedans
- 50Ohm
- RoHS Durumu
- RoHS Compliant
- Yayın Yılı
- 2000
- Parça Durumu
- Active
- Polarity
- Standard
- Mil Conformance
- NO
- Fastening Type
- Threaded
- Nem Hassasiyeti (MSL)
- 1 (Unlimited)
- Vswr
- 1.3
- Center Contact Plating
- Gold
- Çalışma Sıcaklığı
- -65°C~165°C
- Dielectric Material
- Polytetrafluoroethylene (PTFE)
- Shield Termination
- Clamp
- Montaj Tipi
- Free Hanging (In-Line)
- Housing Color
- Silver
- ECCN Kodu
- EAR99
- Insertion Loss
- 0.15dB
- Din Conformance
- NO
- Frekans
- 11GHz
- Orientation
- Straight
- Includes

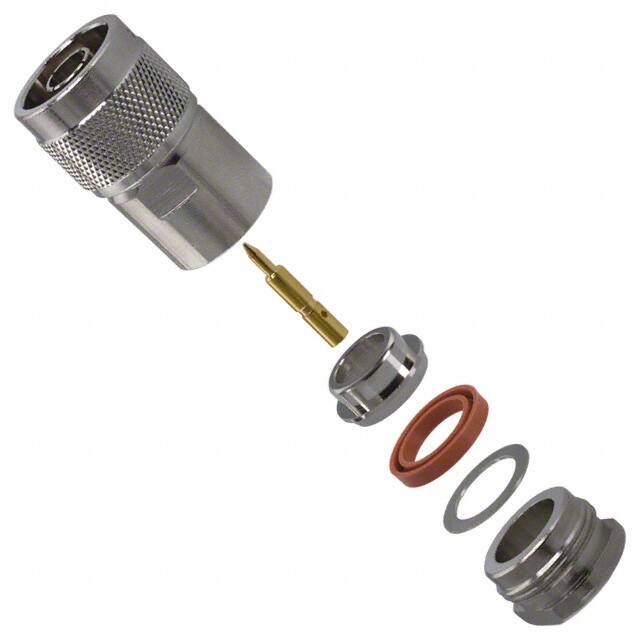

- 6 pcs - 1 Connector, 1 Braid, Clamp, 1 Clamp, 1 Contact, 1 Gasket, 1 Washer
- Uzunluk
- 38.1mm
- Montaj
- Cable, Free Hanging
- Cable Group
- RG-8, 8A, 9, 9A, 9B, 87, 213, 214, 225, 302, 393
- Body Finish
- Nickel
